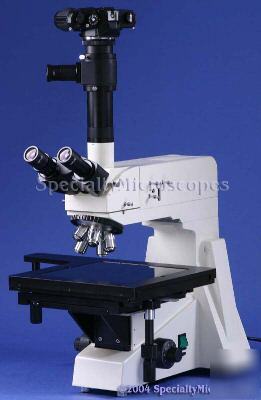

50X-800X large microscope metallographic metallurgical
Search in titles & descriptions
METALLURGICAL - METALLOGRAPHIC
EPI - ILLUMINATION TRINOCULAR UPRIGHT MICROSCOPE STAGE MOVES UP / DOWN
Camera and Attachment NOT Included.
Projection Screen NOT Included.
This system is capable of this type of connection.
Sacagawea Coin Taken Under 10x objective
This system is capable of this type of connection.
This system is capable of this type of connection.
Digital Camera - PC Connectivity.
This system is capable of this type of connection.
* Excellent Quality Upright Trinocular Professional Metallurgical - Metallographic Microscope!
* Ideal for Identification and Analysis of the Structure of Different Metals and Alloys.
* Super Sized Microscope! This is a Huge Microscope and Heavy Duty!
* Extra Large Stage with an Incredible Maximum Stage Travel of 11 Inches (X-Direction) x 9 Inches (Y-Direction).
* The Large Travel is Suitable for Examining Large Silicon Wafers and Other Sizable Specimens as Most Scopes would Require the Specimen to be Relocated in Order to View it Completely.
* Upright Design (Objectives Above the Stage).
* Stationary Head - Movable Stage. Different Applications Require Different Arrangements. This Scope has its Stage Move Up/Down to Focus. We Carry a Similar Scope that Instead has its Head move Up/Down to Focus.
* Great for Detailed Inspection of a Metallic Surface.
* Perfect for Metallurgical Laboratories, Foundries, Silicon Wafer Inspection, Industrial Applications, and Quality Control Labs!
* Excellent Bright and Clear, High Contrast Images through High Quality Optics.
* Great for Viewing Opaque Surfaces - Light Travels Through the Objective and Reflects off Surface of Object and Back Into Objective!
* No Worries about how to get Light to the Specimen's Surface!
* Epi-Illumination Microscopy System: Light From Internal Source goes through the Horizontal Top, Reflects Down through Objective to the Specimen, Reflects off the Specimen, and Back into the Objective and then to the Eyepieces. Also known as Reflected Light Microscopy.
* Includes Polarizer and Analyzer! View your Metallic Specimens under Cross Polarization Conditions using Epi-Illumination!
* Great Economical Price! Priced Thousands Lower than Competition!
* Photograph Your Own Specimens!
* Have Your Own Complete Digital Video Microscopy System!
* Capture Images With Your Computer!
* Display Images on a High Resolution CCTV Monitor or Television!
* Videotape What You See Under the Microscope!
* Versatility - Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
* Other (not included) accessories may be required for connecting digital/film cameras, CCD cameras and Video cameras. Call or Email us your specific requirements.
* Five Magnifications: 50x, 100x, 200x, 400x, and 800x.
* Eyepiece Set Included: Wide Field 10x.
* Long Working Distance Objectives! Great for Special Applications where a little More Room is Needed Between Objective and Specimen!
* Five PLAN DIN Objectives: 5x (18.3mm W.D.), 10x (8.9mm L.W.D.), 20x (8.7mm L.W.D.), 40x (3.7mm L.W.D.), 80x (0.96mm L.W.D.).
* These PLAN Objectives are Superior Quality and the Most Expensive. The Achromatic and Semi-Plan as Found on Other Scopes are the Cheaper Quality.
Head - Interpupillary Distance - Diopter
* 45 Degree Inclined Trinocular Head.
* Adjusts to the Distance Between your Eyes: 53 to 75mm InterPupillary Distance.
* Diopter Adjustment to Correct for Your Specific Vision Needs.
* Side Slide-In Filter Holder.
* Four Filters Included: Yellow, Blue, Green, Frosted.
* Includes Aperature and Field Diaphragms.
* Condenser Alignment Screws.
* Variable Intensity 20W Halogen Epi-Illumination in Internal Upper Rear Housing.
* Extra Large Mechanical X-Y-Z Movable Stage: Size 275mm x 275mm.
* Low Position Coaxial X-Y Stage Movement Knobs - Range of Movement: 84mm (X-Direction) x 60mm (Y-Direction).
* Extra Stage Movement is Accomplished by Moving the Top Sliding Stage Plate. Control Arm on Left Side of Scope is Used to Move the Top Plate in X and Y directions. Simply Pull the Arm in the Desired Direction. This Movement is in Addition to Any Done by Using the Low Posion Coaxial X-Y Knobs.
* Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
* Maximum Distance From Bottom of Longest Objective to Top of Stage: 28mm.
* Coarse Adjustment Travel Range: 31mm (Stage Movement Distance Up/Down).
* Fine Adjustment Division: 0.0008mm.
* Adjustable Lock Ring Stop to Limit Coarse Range to Protect Specimens.
* Tension Adjustable Coarse Focusing.
* Total Overall Height of Microscope: 477mm.
* Instrument Weight: 40 lbs.
* Includes: Dust Cover, Instruction Manual, and Extra Bulb.
* Includes One Black and One White Replaceable Square Stage Plate.
* Optional Measuring Capability: Call Us Today to Discuss Your Measuring Needs and How This Microscope Will Work for You!
* Manufactured under ISO: 9001 Standards.
* Protective Molded Styrofoam Container.
* Precision Ground Glass Lens.
* Quality Construction, Metal Frame.
* 110 VAC (email about 220V availability).
5 Year Manufacturer's Warranty
* The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
* If your system needs repair, simply let us know and we will see that it is back in service ASAP.
RISK FREE - MONEY BACK GUARANTEE - 10 DAY TRIAL PERIOD!
QUALITY SERVICE AFTER THE SALE!
If you have questions or issues after the sale, please call our technicians. They are just as happy to talk to you after the sale as before. We hire skilled sales technicians who are required to have a Bachelor’s Degree in biology, engineering, or related science fields.
