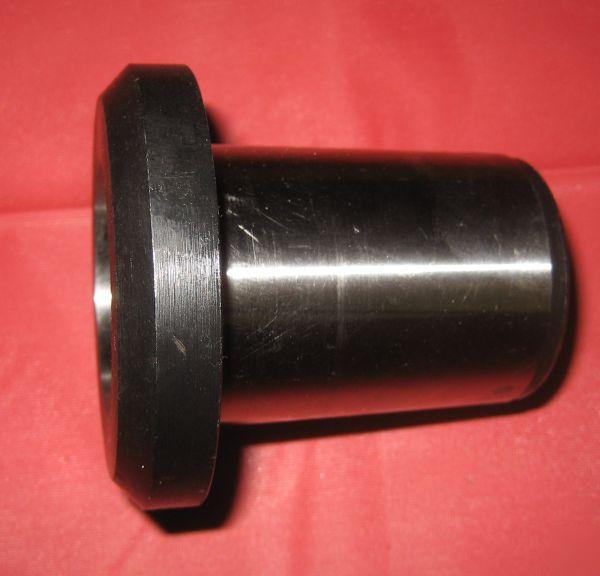

New 5C spindle adapter for south bend 10 13 16 lathe
Tools4cheap own New 5c spindle adapter designed to fit the following South Bend lathes:
Heavy 10" with threaded 2-1/4"-8 spindles (will fit the camlock spindles but your spindle protector wont fit, they made one with a smaller lip for them)
13" with 2-1/4"-8 spindles (same note as heavy 10 about camlock)
14.5 and 16 with 2-3/8"-6 threaded spindles.
Hardened and ground and has pin to prevent collet from rotating
Note: The outside taper is a specific taper to South Bend lathes. It does not directly correspond to a morse taper. It will not fit other brands of lathes.
Aprox 1.545" small end and 1.638" large end. Southbends were originally spec'd at 1.629 so these stick out slightly more from the spindle nose. (aprox 1/4")
* Business/Personal Checks with a 10 day hold.
* If you are exempt you will need to send me a properly filled out MA exemption form
* Your 100% satisfaction is important to me.
* I fill out any custom forms honestly and will not devalue the price.
* Remember you will be responsible for all Tax, Duty, Import and Brokerage fees.
* All photos are taken of the actual items. Never stock photos from elsewhere.
