Tektronix 11801C digital sampling oscilloscope mainfra

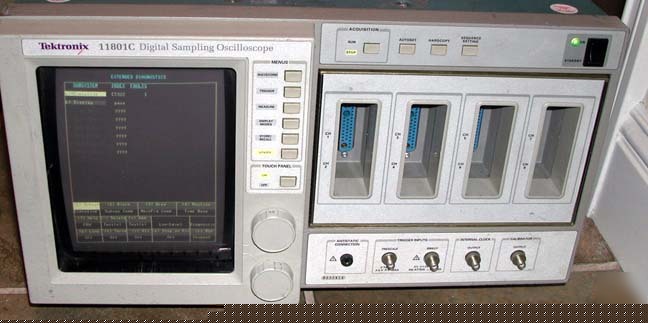

Tektronix Model 11801C Digital Sampling Oscilloscope Mainframe. A basic description of this item is as follows: The 11801C Digital Sampling Oscilloscope offers the widest range of on-board measurement and waveform processing capabilities of any multi-Gigahertz scope. With excellent measurement repeatability, exceptional vertical resolution and fast display update rate, the 11801C is a powerful measurement tool for semiconductor testing, TDR characterization of circuit boards, IC packages and cables, and high speed digital data communications. * DC to 50 GHz Bandwidth depending on sampling plug-in * 7 Ps Rise Time * Eight Channels, Expandable to 136 (with SM-11 multi-channel units) * High Resolution and Measurement Repeatability * 10 Femtosecond Sampling Interval (0.01 ps) * Modular Architecture * Dual Timebase Allows Multiple Windows * FFT * Predefined Telecom Masks * True Dual-Step Differential TDR * Fully Automatic Jitter and Noise Measurements * Automatic Statistical Measurements, Histograms and Mask Testing * Automatic Pulse Measurements with Statistics * Comprehensive Waveform Processing * Complete Programmability for ATE Applications * Color Display with Color Grading Applications * Semiconductor Test * TDR Characterization * High Speed Digital * Data Communication I believe this description is correct but I cannot warranty it. This item requires 1 - 4 sampling plug-ins (NOT INCLUDED, We do NOT have) in order to use this instrument. Also when powered up it indicates an "Executive E5322" Fault during self-test. We are unable to test this item any further so we are selling it as in need of REPAIRS or for PARTS. This item is in good overall physical condition and the CRT appears to have good brightness & focus and the touch screen is functional.
