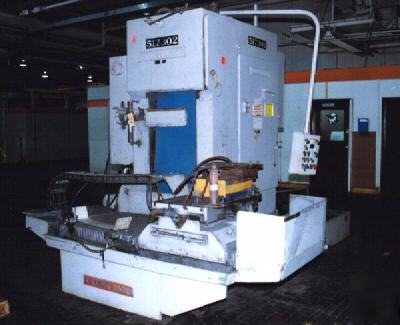

18" sundstrand/engelberg platen type vert belt grinder
18" SUNDSTRAND/ENGELBERG PLATEN TYPE VERTICAL
Full Length Bed Table - Moves To Extreme Right To
Load/Unload (Sub-Table: 15" W x 17.5" Deep)
Auto Table Cycle - Auto Spark-Out w/Timer
Auto Rapid Traverse To Grinding Position
Auto Oscillation Variable For Stroke Length & Rate
Automatic Retract To Unload/Load Position
Pneumatic Auto Belt Tracking - Pneumatic Belt Tension
Table Dimensions, W x D................ 20" x 33"
Table Travel, Hydraulic................ 42"
Platen Area (Belt Back Rest), W x H.... 20" x 24"
Abrasive Belt Width, Maximum........... 18"
Abrasive Belt Length................... 168"
Main Drive Motor, Horsepower/RPM....... 50 HP/1800 RPM
Hydraulic Motor, Horsepower/RPM........ 5 HP/1740 RPM
Coolant Motor, Horsepower/RPM.......... 3/4 HP/1725 RPM
Electrical System...................... 220-440/3/60
Overall Dimensions, W x D.............. 9'8" x 8'11"
Overall Height......................... 9'6"
Weight, Approximately.................. 14100 LBS
CONDITION: Appears to be in VERY GOOD Condition
As Taken from Service Government Aerospace Facility.
NOTE: Machine Built To Face Or Flat Grind On Vertical
Surface. We Will Clean, Paint And Cycle Under Power.
PRICE: F.O.B. OHIO (TOLEDO)........... $24,500.00
All machines/equipment subject to prior sale.
