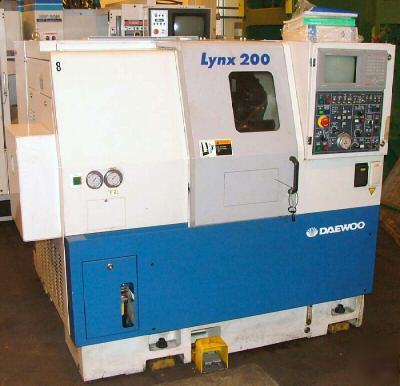

Daewoo lynx 200 cnc turning center
MANUFACTURED..............1998
SWING OVER BED......................18.11"
SWING OVER SADDLE...................13.78"
MACHINING DIAMETER..................6.5" MIN.
MAX. WORK LENGTH....................11.81"
DRAW TUBE DIAMETER..................1.77"
TRAVELS..(X) AXIS...................6.3"
(Z) AXIS...................13"
RAPID TRAVERS (X) AXIS..............787 IPM
CUTTING FEED (X/Z)..................0.001 - 20 IPM
SPINDLE CHUCK DIAMETER..............6.65"
SPINDLE SPEED.......................50 - 5000 RPM
SPINDLE NOSE........................A2-5
SPINDLE BORE DIAMETER...............2.09"
SPINDLE BEARING DIAMETER............3.54"
SPINDLE DRIVE.......................7.5/10 HP
FEED DRIVES.........................1.9 HP
# OF TOOLS..........................12
TAILSTOCK DIAMETER..................2.56"
BORE TAPER................#4 MT
TRAVEL....................3.15"
MACHINE DIMENSIONS..................64"x63"x61"HT
MACHINE WEIGHT......................7,000 LBS
