5'15" willis-bergo/bergonzi radial drill #25074

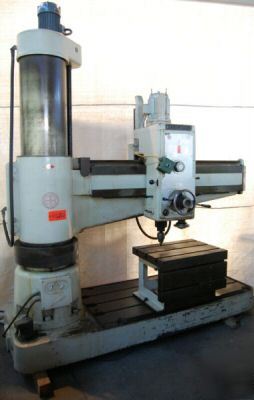

5'15" WILLIS-BERGO/BERGONZI RADIAL DRILL
Plain-Type Base - Power Arm Elevation
Hydraulic Clamping to (Head, Arm & Column)
Drilling Capacity, Cast Iron........... 2.625"
Drilling Capacity, Mild Steel.......... 2.125"
Arm Length............................. 5'
Column Diameter........................ 15"
Horizontal Head Travel on Arm.......... 52"
Vertical Arm Travel on Column.......... 2'7"
Vertical Spindle Travel in Head........ 12"
Spindle-Nose to Base, Maximum.......... 54"
Base Working Surface, W x L............ 2'9" x 7'5"
Base Height............................ 9"
Spindle Taper.......................... #5 MT
(23) Spindle Speeds, Range............. 23 to 1850 RPM
(12) Spindle Feeds, Range.............. .004 to .040 IPR
Motor Horsepower....................... 6.5 HP
Overall Height, Floor to Top Of Column. 8'7"
Weight Approximately................... 7100 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $9,950.00
All machines/equipment subject to prior sale.
