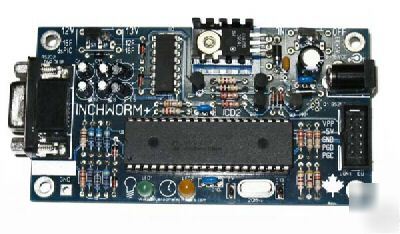

Inchworm+ microchip pic ICD2 program/debug assembled


This is an Assembled kit; it includes all parts including a preprogrammed 16F877A with bootloader. It does not include the optional blue case (a Hammond 1591B). You will require basic electronics knowledge and soldering skills to build the kit. Unlike many other ICD2 clones you get a schematic and manual.
The Inchworm+ is a circuit programmer / debugger for Microchip Flash. It functions just like a Microchip ICD2 but at a much lower price. This unit is compatible with the latest (as of this writing) Mplab IDE (v7.42). Just like the Microchip ICD2, the firmware is automatically updated to support new PICs. It supports all the PIC10F/12F/16F/18F and dsPIC30F/33F series that are supported by Microchip ICD2.
For information can be found on Microchip’s website at http:// /stellent/idcplg?IdcService=SS_GET_PAGE&nodeId=1406&dDocName=en019469&part=SW007002 .
