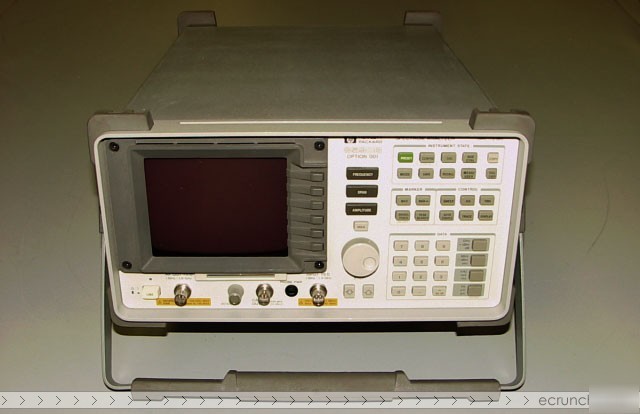

Hp\agilent 8590B 1.8 ghz spectrum analyzer loaded
Information - Questions? Call (***)-253-6114 Ask for Chip or Trip
The HP 8590B model offers basic RF and microwave measurement performance. The HP 8590B has a frequency range of 1 MHz to 1.8 GHz, a 75-ohm input, and a weight of only 13.6 kg (30 pounds). The amplitude range is a wide -63 to +75 dBm. You can change the test capabilities of these spectrum analyzers to fit specific measurement needs. The memory card reader enables you to load specific measurement personalities for cable television, electromagnetic compatibility, or digital radio applications. Complex measurement routines and test limits are available at a keystroke. The tracking generator provides a synchronously swept signal source for stimulus-response.
This unit has the following specifications:
* Frequency Range: 1 MHz to 1.8 GHz
* Readout Accuracy: ± (5 MHz + 1% of frequency span)
* Span Range: 0 Hz, 50 kHz to 1.8 GHz
* Sweep Time: 20 ms to 100 s
* Sweep Trigger: free run, single, line, video, external
* Amplitude Range: -63 to +75 dBm V
This unit has the following options installed:
* 001 = 75 ohm input impedance; BNC input connector
* 003 = Memory Card Reader. For use with 85700A 32K byte cards and Measurement Personalities. 85711A, 85712A and 85713A.
* 011 = 75 ohm Tracking Generator; 100kHz-1.8 GHz Built-in. Variable output.
This item is in excellent condition, working perfectly, and comes with a 14 Day Guarantee Against DOA.
Our 14 Day Guarantee Against DOA (Dead On Arrival) does not guarantee compatibility.
