Nos thermocouple rtd digital meter / calibrator

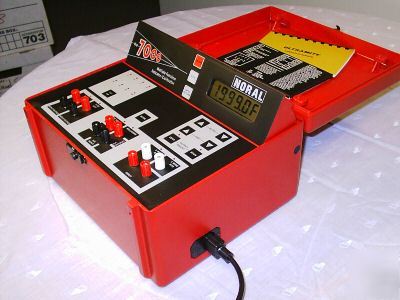

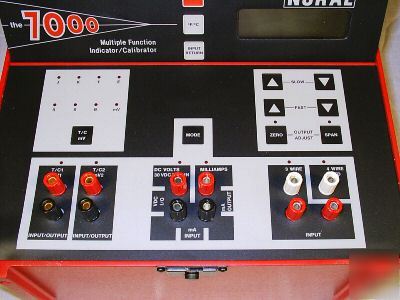

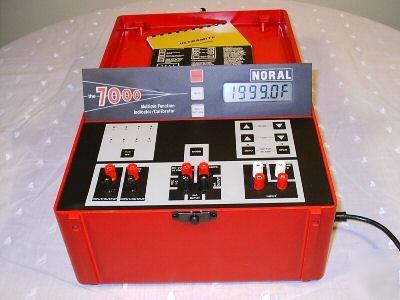

Multiple-Function Thermocouple RTD INDICATOR/CALIBRATOR
NEVER USED - NOS (New Old Stock) in Original Box.
Made by THERMO ELECTRIC INSTRUMENTS of Saddle Brook, New Jersey
Originally sold for approximately $1,800.00 Retail !!!
This highly accurate digital portable instrument is from a special lot that was private-branded for a US Government Defense Contractor by Thermo Electric. This instrument came from the "cream of the crop" as a select unit with better than average specification tolerances intended for government/military useage .
1. Measure temperature directly using a thermocouple or RTD.
2. Measure millivolt, milliamp and DC voltage signals directly.
3. Calibrate potentiometer type instruments.
4. Calibrate transmitters and a wide variety of process control instrumentation.

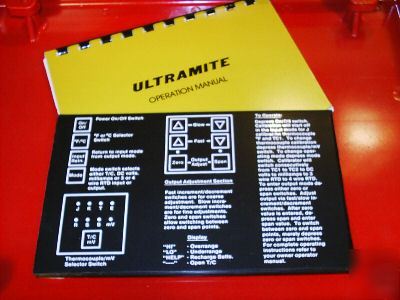

Ultramite is a multiple function instrument with built in reference junction compensation of thermocouple ranges. It includes the ability to to indicate and output the full useable range of NBS thermocouple types J, K, T, E, R, S, and B. Additionally, 3 or 4 wire 100 ohm @ 0b degree C platinum RTD's to DIN Curve 43760 (Alpha 0.00385 ohms/ohm/degree C) can be indicated. Ultramite also contains the ability to input or output millivolts, milliamps and DC voltages. When working with temperature, resolution is 0.1 degree F/C.
Original Ultramite Factory Specifications:
Thermocouple Input Mode Specifications:
ISA Calibration Range Accuracy
F or C membrane switch selectable from front panel.
THERMOCOUPLE INPUT MODE SPECIFICATIONS
Resolution: 0.1 F or 0.1 C - all ranges, Input Leakage Current: 10 nanoamperes maximum, Source Resistance Effects: 1 uV error/100 ohms source resistance, Input Impedence: 100 meg minimum, Span Drift: 25 ppm/degree C of reading, Zero Drift: 0.23 uV/degree C, Reference Junction Compensation Error: 0.02 deg./deg.. J,K,T,E calibrations - 0.05 deg./deg. R,S,B calibrations
THERMOCOUPLE OUTPUT SOURCE MODE SPECIFICATIONS
Range: All thermocouple ranges (-12 mV to 100 mV adjustable) Adjustment: Coarse and fine membrane switches continuous adjustment over entire span. Source Mode: Compensating output thermocouple simulation.
INPUT MILLIVOLT MODE SPECIFICATION
Range: -9.99 mV to 90.00 mV reading, Resolution: 0.01 mV, Input Leakage Current: 1 uV error.100 ohms source resistance, Input Impedance: 100 megohms, Span Drift 25 ppm/degree C of reading, Zero Drift: 0.23 uV/degree C.
OUTPUT MILLIVOLT MODE SPECIFICATIONS
Range: -12 mV to 100 mV continous adjustment, Adjustment Coarse and fine membrane switches continous adjustment over entire span.

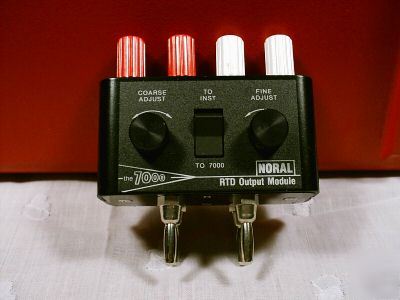

Range: -320 to 1500 F, -196 to 815 C, Accuracy: 0.7 F or 0.4 C, RTD Curve: DIN standard 43760.00385 Alpha, Type Wiring: 3 or 4 wire configuration, Excitation Current: 1 mA, Maximum Compensation Lead Resistance: 100 ohms, Span Drift: 25 ppm/degree C of reading
MILLIAMP INPUT MODE SPECIFICATIONS
Range: -9.99 to 90.00 mA 9input-display). Unit displays "LO" below -9.99 mA, "HI" above 90.00 mA, Resolution: 0.01 mA, Shunt Resistance: 10 ohms, Span Drift: 50 ppm/degree C of reading.
MILLIAMP OUTPUT MODE SPECIFICATIONS
Range: 0 to 50 mA continuously adjustable. Unit displays "LO" below 0.00 mA, "HI" above 50.00 mA, Maximum Output Load Resistance: 480 ohms 50 mA, 1200 ohms @ 20 mA, 4800 ohms @ 5 mA, adjustment: coarse and fine membrane switches continous adjuatment over entire span.
VOLTAGE INPUT MODE SPECIFICTIONS
Range: -9.99 to 30.00 volts DC input display. Unit displays "LO" below -9.99VDC, "HI" above 30.00VDC, Resolution: 0.01 volts, Input Impedence: 10 megohms, Span Drift: 50 ppm/degree C of reading
VOLTAGE OUTPUT MODE SPECIFICATIONS
Range: 0 to 10 volts DCcontinuously adjustable. Unit displays "LO" below 0.00 volts, "HI" above 10.00 volts, Maximum Load Resistance: 1000 ohms, Adjustment: Coarse and fine membrane switches continuous adjustment over entire span.
No current certificate of calibration is implied or included.
