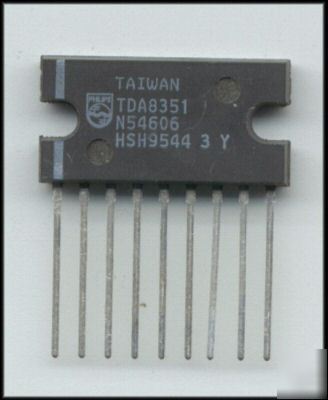

8351 / TDA8351 / dc-coupled vertical deflection circuit
Now over 1,000 items in our Store!
DC-coupled vertical deflection circuit
Highly efficient fully DC-coupled vertical output bridge circuit
– short-circuit of the output pins (7 and 4)
– short-circuit of the output pins to V
High EMC immunity because of common mode inputs
The TDA8351 is a power circuit for use in 90
° and 110° colour deflection systems for field frequencies of 50 to 120 Hz. The circuit provides a DC driven vertical deflection output circuit, operating as a highly efficient class G system.
