New pressure indicator heise 901A led digital 6000 psig

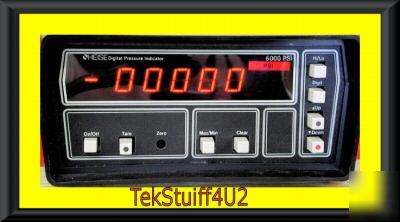

HEISE 901A LED DIGITAL PRESSURE INDICATOR
INFORMATIONFROM THE HEISE SPECIFICATION SHEET:
2. Pressure Sensor Material is Inconel 718 with other wetted parts 316SS
3. Process connection is 9/16-18 UNF-2B female port for ¼ Inch Female Port for ¼†OD Pressure Tubing
4. Accuracy % of Span = ±0.07%
5. Repeatability is: ±0.005% of span
6. Display is 5 digit LED 0.43 Inch Hi
7. Media Compatibility is liquid or gas compatible with Inconel and 316 SS
8. Power required is 115 VAC 50/60 HZ
For a copy of the complete factory specification pages in PDF format, send me your e-mail

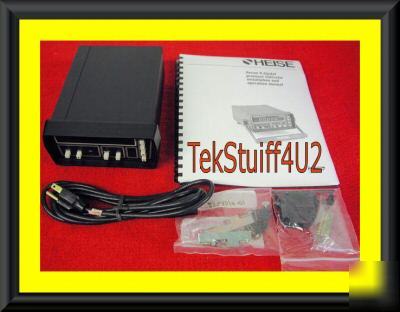

1. Heise 901A Digital Pressure Indicator S/N: S9 17617 NEW
2. NEW Power Cord for the Heise 910A
3. New Heise 901A panel mounting kit
4. New RS-232 plug to make a custom cable to your computer or processor
5. Printed Manual for the Heise 901A
PS: New this costs $3,370 from Heise
PS: Did I mention it was made in the Good Ol' USA !
