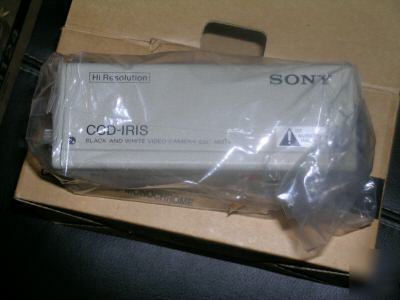

Sony ssc-M374 1/2" hyp had hi resolution ccd b/w camera


1/2 inch Hyper HAD High Resolution CCD B/W Camera
1/2" Hyper HAD high resolution CCD camera (768H x 494V). 570 line horizontal resolution. High sensitivity (0.3 lux at F1.2). Wide range CCD iris function (1/60 - 1/100,000 sec) allows use of inexpensive manual iris lenses. C-mount capability. Accepts video type auto-iris lenses. AC 24V line lock operation with V-phase.
* 1/2" HyperHADâ„¢ high resolution CCD B/W camera (768 x 494)
* 570 line horizontal resolution
* Excellent Sensitivity (minimum scene illumination of 0.3 lux at f1.2)
* Wide range electronic CCD Irisâ„¢ function (1/60 ( 1/10,000 sec) allows use of inexpensive manual iris lenses
* Accepts video type auto iris lenses
* AC 24V Line Lock with V-phase
* 570 tvl horizontal resolution for exceptional picture detail
* Shutter speeds from 1/60 to 1/10,000 second
* AC power frequency, used for the vertical sync reference, provides roll free switching when using multiple cameras
* Pickup Device: 1/2" Hyper HAD Interline Transfer CCD
* Pic. Elements (HxV): 768 x 494
* Sync System: Internal/External
* External Sync: Ac Line Lock
* V-Phase Control: 6-Position
* Horizontal Resolution: 570 lines
* S/N Ratio: 50 dB (AGC off)
* Video Output: 1.0Vp-p, BNC x 1
* Electronic Shutter: Variable, 8 settings
* Power Requirement: AC 24V, ±10%
* Signal Sys./Scanning System: EIA 525/2:1
* Min. Illumination: 0.3 lux at f1.2
* Dimensions: 2 5/8" x 2 1/4" x 6 1/8" (64 x 57 x 155mm)
* CCD Irisâ„¢: Yes 1/60 - 1/10,000 sec
WE HAVE MANY MANUFACTURERS CONTROL UNITS,
ANY OTHER COOL UPGRADES THAT CAN INCREASE THE CONVENIENCE, PERFORMANCE OR EASE
OF USE OF YOUR SECURITY SYSTEM!!
*PLEASE SEARCH OUR STORE TO SEE MORE SECURITY PARTS*
Go to fullsize imageGo to fullsize image
WE ARE NOT SECURITY SYSTEM EXPERTS. WE ARE LIQUIDATORS WHO HAVE PURCHASED A LARGE QUANTITY OF SECURITY SYSTEMS AND ACCESSORIES.
WE HAVE PROVIDED AS MUCH INFORMATION AS WE CAN. WE WILL CERTAINLY NOT BE HELPFUL WITH ANY INSTALLATION QUESTIONS OR PROBLEMS.
WE HAVE DONE THE ABSOLUTE BEST WE CAN TO PROPERLY REPRESENT OUR
If you have any questions, please contact us at your
convenience: IDEALTRADE@AOL.COM
Thanks for your consideration!! Good Luck!
