RARE 1990 HARDINGE HLV-H-EM LATHE w/D1-3 SPINDLE NOSE
RARE 1990 HARDINGE HLV-H-EM LATHE w/D1-3 SPINDLE NOSE

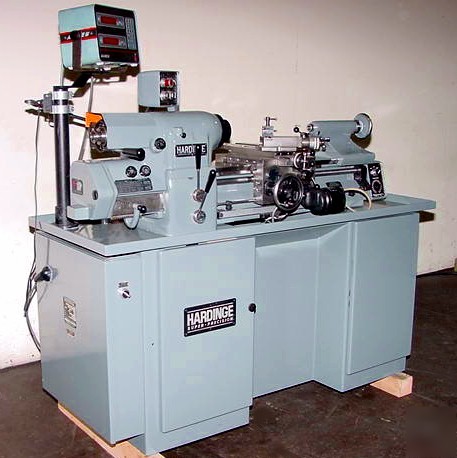

HARDINGE SUPER PRECISION TOOL ROOM LATHE,
MODEL HLV-H-EM, S/N: HLV-H-13244-T, NEW 1990
SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING
SPINDLE NOSE ......................... CAMLOCK D1-3"
WITH ROUND TYPE 5C COLLETS ......... 1-1/16"
WITH STEP CHUCKS ..................... 1-1/16" TO 6"
WITH JAW CHUCKS ...................... 5"
WITH EXPANDING COLLETS ............... 3"
VARIABLE SPINDLE SPEEDS .............. 125 - 3,000 R.P.M.
HOLE THROUGH SPINDLE ................. 1-1/4"
SWING OVER BED ....................... 11"
SWING OVER CARRIAGE .................. 9"
SWING OVER CROSS SLIDE ............... 6"
DISTANCE BETWEEN CENTERS ............. 18"
COMPOUND SLIDE TRAVEL ................ 3"
CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.
CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.
TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"
TAILSTOCK SPINDLE TAPER .............. #2 MT
INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I.
METRIC THREADING RANGE IN GEARBOX (36) 0.275 - 2.7 MM
APPROXIMATE WEIGHT ................... 1,700 LBS.
- DUAL GEARBOX FOR PRECISION ENGLISH OR METRIC THREAD CUTTING
- DUAL READING INCH/METRIC DIAL FOR COMPOUND AND TAILSTOCK
- ACU-RITE III TWO AXIS DIGITAL READOUT
- ALBRECHT DRILL CHUCK FOR TAILSTOCK
- BALL BEARING QUICK ACTING 5C COLLET CLOSER WITH A LARGE
- .5 - 1 H.P. 3/60/460 VOLT TWO-SPEED MAIN DRIVE MOTOR AND
- ALSO AVAILABLE AT EXTRA COST - A BRAND NEW HARDINGE TAPER
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE.
Machine Location: HARRISON, NJ
