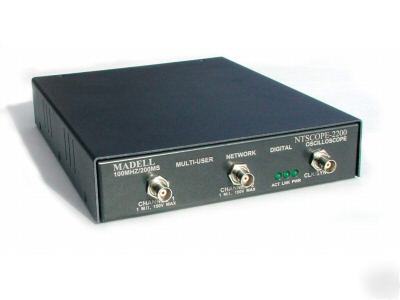

Network digital oscilloscope,100MHZ/200MS


* Total network control. No parallet port, serial port, USB, or other connection and configuration necessary. User commands and oscilloscope data are transmitted over the network, can be used in home network, LAN or WAN. Can also be connected directly to a computer without a network environment. Support wireless ethernet connection.
* 10/100T network connection.
* 200 MS real-time sampling per channel.
* 20 GS equivalent repeated sampling per channel. Can reconstruct repeated signals up to 100 Mhz. Repeated sampling can be turned off to work with random digital signals up to 100Mhz.
* 8 bit A/D resolution per channel.
* Auto or Normal trigger mode.
* Expandable integrated DSP functions, FFT, DCT, Historgram, FIR filter design and realtime simulation, math, etc. for both channels. Excellent for education and scientific research. These functions are mostly availabe on the windows program.
* Trig on Rising or Falling signal edges.
* Selectable Sampling or Peak detection modes.
* 2 mv to 10v vertical divisions. Full 8 bits are used in every voltage level. No software tricks.
* 1 ns to 10 s horizontal divisions.
* Voltage and time measurements can be done automatically or manually.
* Display can be set at either Y-T or X-Y mode. Also selectable Vectors or dots display modes.
* Auto offset self-calibration.
* 250% more screen area (10 vertical X 24 horizontal divisions)
* 3-D display shows signal variations over much longer time period. Previous sweeps are gradually faded to background. Very helpfull for some applications in which every event is generated with great effort. Enjoy watching your signals, save your eyes.
* Multi-user capability. 16 users can connect to it at the same time.
* One computer can connect to many network oscilloscopes with different IP addresses at the same time. Making it a scope with virtual unlimited channels(not synchonized). Facilitate debugging complicated systems.
* Built-in Instant Message board for team members at different locations.
* Data log capability at clocks slower than 100ms.
* Two 1X/10X 150 Mhz probes included.
* Open data and command network packets. Support standard TCP/IP. You can process the captured data with your own program.
* Need a static IP address for it to work in WAN(go outside the local area network).
* Display and control software for PC is simple to use. Just copy or download to any computer and it is ready to run. No installation necessary.
* The Java program can be used on almost any computers, PC, Mac or Linux.
* Small size(smaller than a notebook computer), easy to carry around.
WINDOWS demo program can be down loaded here.
Following is the Java interface with realtime signals.
Your browser is not Java enabled.
Multi-User and Multi-platform Features
Direct connection to a computer with a crossover cable
Wireless connection with an access point
