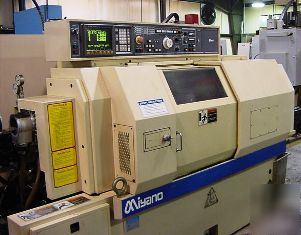

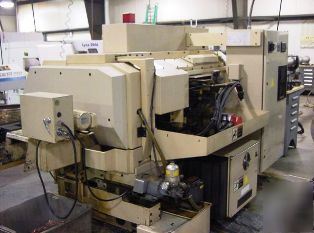

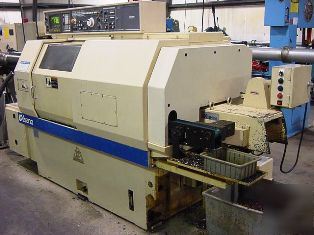

Miyano bnd-34S2 cnc turning center live tool
General Specifications As Per Brochure
max. chuck work length: 4-7/8"
variable speed range: 170 to 5,000 rpm
spindle motor (30 min. rating): ac10hp (7.5kw)
positioning angle (opt.): 7.5 deg.
rapid traverse rate x/z-axis: 472"
turret indexing time: 0.5 sec./1 pos.
variable speed range: 170 - 5,000 rpm
spindle motor (max. rating): vac3hp
max. slide stroke (b-axis): 12-3/4"
machine size without bar guide: 62" x 96" x 68"
lns hys 6.35 12' gatling style barfeed
