Edm 3-axis dro digital read-out kit 5 year warrantee
Kit includes 3 Sealed Glass scales, Display and Mounting Arm. Standard kit is equipped with 5um/0.0002" resolution scales, High Resolution 1um/0.00004" Scales are also available. Our EDM DRO System includes Digital cut depth control and Z-axis height alarm key feature in EDM operations. Standard Kit is supplied with 3 Scales with up too 20 inches travel each. Correctly sized scales will be sent for your specific EDM installation.
SMW Professional DRO Series are a Tough, Accurate and Easy To Use. System has Sealed Glass Scales that are designed to be operated in Dusty, Fluid Soaked and Swarf filled environments. This Shop proven System will increase your Quality and Productivity.

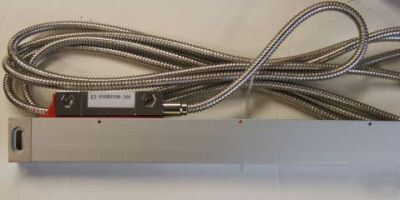

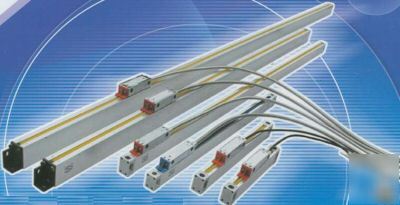

A Sealed Glass Scale does not become damaged from swarf scratches or buildup material in scale. Scales are double sealed with both an outer chip deflector and inter fluid proof seal. Seals are constructed of a special anti-aging; oil proof plastic. Creating a Scale protection system that is Dust, Fluid and Swarf resistant. Scale measurement system is incased in a rigid extruded aluminum channel exterior. Cable Shielding and TTL error checking allow superior resistance to signal interference.
Our Grid scales supply Superior Accuracy and repeatable accuracy. Each Scale is numbered and comes with a Certificate of Accuracy Compliance in meeting scale specifications (listed below).
Reliability- Each System is made in strict compliance to ISO9001-2000 quality control standards. Display cases are precision die casting and sealed with a Splash-Proof Front. These are a Tough reliable System built for machining!
Transmission optical infrared measuring system ,Infrared wavelength:880mm
The reading unit rolling system
90 degree five ball bearing rolling system
45 degree five ball bearing rolling system
Temperature 32-105° Moisture?90(20±5°)
* ABS/INC Measurement Operation
* Inch/ Metric Interchange at any Point
* Settable Voltage Cut Control
* 200 Point SDM Multi Axis Memory
* Lithium Memory Battery Backup & Soft OFF

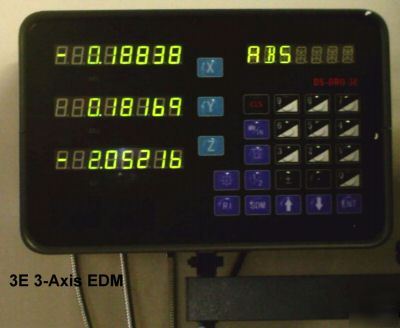

Display features and functions are built to streamline the machining process and increase productivity. There are no complex menus and functions are easily learned.
* 3 Scales ( Call or Specify Length when ordering)
* Installation Brackets & Hardware
* Power and Grounding Cords
* EDM machine Control Cable
Power requirements 120 or 240 volt single phase 50-60hz
* 120 volt power cable Standard
* On/Off Toggle Switch on back
* Clear Plastic Display Cover
Scale Option: High Resolution Scales are available for $50.00 per scale more. System can be supplied with 1 to 3 1um/0.00004 resolution Scales
Your Satisfaction is Guarantee- If your DRO System kit is not every thing we have promised notify us within 14 days after delivery for a full purchase price refund! Kit must be returned in salable condition.
