40-600X metallurgical microscope + usb measuring camera
Search in titles & descriptions
EPI - ILLUMINATION METALLURGICAL
MONOCULAR UPRIGHT MICROSCOPE W/ USB PC CONNECTED CAMERA W/ MEASURING SOFTWARE

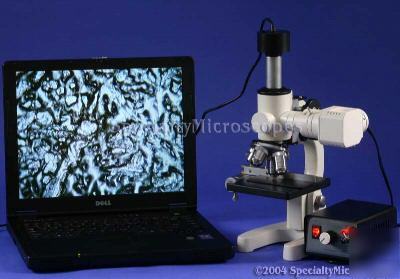

Connects Directly to Computer!
PM Component Photo Thru Eyepiece Tube
Ductile Cast Iron Under 40x Objective
Muntz Metal Taken Under 40x Objective
Connects Directly to Computer!
* Nice Quality Metallurgical - Metallographic Monocular Microscope!
* Ideal for Identification and Analysis of the Structure of Different Metals and Alloys.
* Great for Detailed Inspection of a Metallic Surface.
* Research Grade Performance with Highly Advanced Features and Optics!
* Perfect for Metallurgical Laboratories, Foundries, Silicon Wafer Inspection, Industrial Applications, and Quality Control Labs!
* Great for Viewing Opaque Surfaces - Light Travels Through the Objective and Reflects off Surface of Object and Back Into Objective!
* No Worries about how to get Light to the Specimen's Surface!
* Epi-Illumination Microscopy System: Light From Side Housing goes through the Horizontal Shaft, Reflects Down through Objective to the Specimen, Reflects off the Specimen, and Back into the Objective and then to the Eyepiece. Also known as Reflected Light Microscopy.
* Includes a Complete High Resolution Color Digital Microscope Camera System.
* High Resolution Camera is Included! USB Interface Camera for Connection to Computer!
* Reduction Lens System built into the camera. This lens system is important to give a more realistic image that isn't too magnified.
* Capture Stunning 640 x 480 Pixel Digital Still Images!
* Capture Live Full Motion Digital Video!
* True Color Image. Automatic Exposure and Shutter Control. File Format: jpg, bmp, tiff, png, pict, ptl. System Req'mt: Win 2000 / Win XP. Cable Length: 1.6m.
* Simple to Use. Plug Camera into Your Computer's USB Port, Load the Software, and You're Taking Images!
* Great for Viewing Specimens and Displaying on a Computer!
* Everything You Need: Microscope, Camera, Easy-to-Use Windows Capture and Editing Software, USB Cable. You Provide Only the Computer.
* Includes software with measuring capability.
* Eight Magnifications: 40x, 60x, 100x, 150x, 200x, 300x, 400x, and 600x.
* Two Eyepieces Included: Wide Field 10x and 15x.
* Four Objectives: 4x, 10x, 20x, and 40x.
* Spring Loaded 20x and 40x Objectives for Protection.
* Two Filters Included: Blue (Daylight) and Green.
* Iris Diaphragm Adjustment for Better Light Control.
* Variable Intensity 20W Tungsten Halogen Illumination with External Power Transformer.
* Graduated Mechanical Stage Size 125mm x 120mm with X-Y Specimen Holder Movement Knobs.
* Fine and Coarse Focusing Knobs on Both Sides of Microscope.
* Maximum Distance From Bottom of Longest Objective to Top of Stage: 40mm.
* Fine Adjustment Division: 0.002mm.
* Rack and Pinion Steel Gears for Focus Movement.
* Adjustable Screw-Stop to Limit Coarse Range to Protect Specimens.
* Inclinable: Whole Scope Pivots on Angle for Maximum Versatility and Ease of Viewing.
* Total Overall Height of Microscope: 360mm.
* Instrument Weight: 11.5 lbs.
* Comes with Dust Cover, Extra Bulb, and Lens Cleaning Cloth.
* Optional Polarizer and Analyzer for great Polarized Images.
* Bright and Clear Projected Images on Optional 90mm Diameter Glass Dome Projector Screen.
* Optional Screen is Great for Ease of Viewing and for Training Applications where many need to View!
* Optional Measuring Capability: Call Us Today to Discuss Your Measuring Needs and How This Microscope Will Work for You!
* Manufactured under ISO: 9001 Standards.
* Protective Molded Styrofoam Container.
* Precision Ground Glass Lens.
* Quality Construction, Metal Frame.
* 110 VAC (email about 220V availability).
* 1 YEAR Manufacturer's Warranty on Microscope and Camera!
* The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
* If your system needs repair, simply let us know and we will see that it is back in service ASAP.
RISK FREE - MONEY BACK GUARANTEE - 10 DAY TRIAL PERIOD!
QUALITY SERVICE AFTER THE SALE!
If you have questions or issues after the sale, please call our technicians. They are just as happy to talk to you after the sale as before. We hire skilled sales technicians who are required to have a Bachelor’s Degree in biology, engineering, or related science fields.
