Millipore sureview sl transducer display

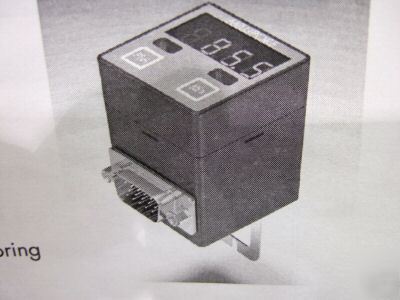

MILLIPORE SureView SL TRANSDUCER DISPLAY
The SureView SL Displays are miniature in-line displays featuring two units of measure per range. The standard units are PSI and MPa. Local display of process pressure improves safety and quality control of the gas delivery systems. Local dual range and dual units of measure enable reduction of OEM part numbers and inventory requirements along with simplifing the documentation and configuration requirements for products targeted for global markets.
The SureView SL Displays are designed to interface to transducers with 100 PSI or 250 PSI full scale outputs. Together, the Millipore pressure transducer and SureView SL Displays provide the most accurate, reliable and easy to use pressure measurement and display system in the industry.
Displays pressure measurement in PSI or MPa units
Field pressure range scale selectability
No field calibration required
Bright red 4 digit LED display
Local indication of process pressure measurement
Gas delivery systems and tools used for semiconductor processing, including:
Valve Manifold Boxes (VMBs)
Bulk Gas Distribution Systems
RANGE - Dual Range, User Selectable
DIGIT HEIGHT - 7.6 mm(0.3")
DECIMAL POINT - Factory Set Auto Range
ACCURACY - 1 Display Count
TEMPERATURE RANGE - 32 degrees to 140 degrees F (0-60 degrees C)
TEMPERATURE COEFFICIENT - 0.2 Display Counts/degrees C (0-60 degrees C)
LINEARITY ERROR - +/- Display Count
POWER REQUIREMENTS - 13 TO 25 vdc
INPUT - 20 mA TYP, 40 mA maximum
· Our business hours are Monday through Friday, 7:00AM to 5:00PM CST.
· We will answer e-mails as quickly as possible, but if you send one after 4:30 on Friday afternoon, you may not get a response until Monday morning.
· The items listed are described as accurately as possible.
· If the item is advertised as non-working, this means that we were unable to get it to work properly.
· If the item is advertised as "powers up", that means that it was powered up but no additional testing was done on the unit.
· Any pictures are of the actual item unless otherwise indicated above.
