Cng fueling station with ariel compressor
USED KRAUS-GLOBAL CNG FUELING STATION WITH ARIEL COMPRESSOR, CATERPILLAR ENGINE, CNG GAS DRYER, STORAGE CYLINDERS AND BUILDING:
NOMINAL CAPACITY: 430 CFM (730 M3/Hr) at 5000 PSIG (345 Bar). Suction pressure range: 18-35 PSIG (1.2-2.4 Bar Gauge). Capacity will vary with the suction pressure.

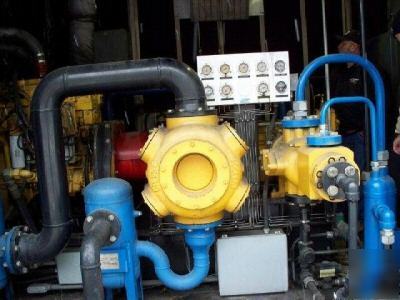

COMPRESSOR: Ariel Five (5) Stage
ENGINE: Caterpillar model 3176B, six cylinder, four stroke. Presently designed to operate on 80% CNG and 20% diesel fuel. Could be reconfigured to operate on 100% CNG.
STORAGE CYLINDERS: Three (3) 24 foot long 5000 PSIG storage cylinders.

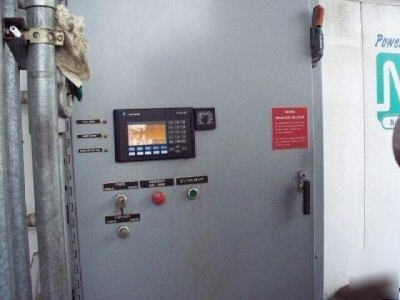

CONTROL PANEL: Allan Bradley PLC based control panel

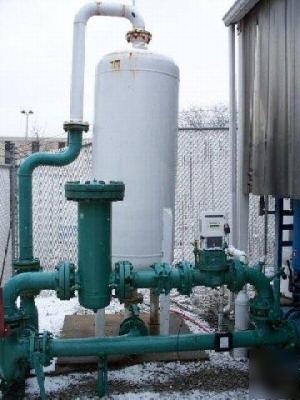

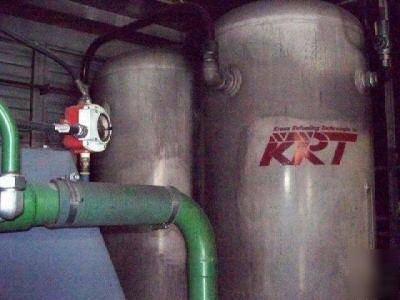

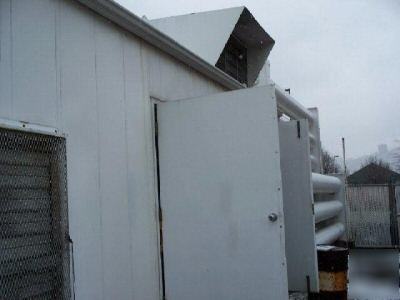

BUILDING AND PACKAGING: This equipment is skid mounted and housed in an insulated self-framing metal building (approx. 32' L x 11' W x 11' H) including necessary filters, dryer, gas coolers, interconnecting piping and wiring etc.
LOOKING FOR A SMALLER OR LARGER CNG COMPRESSOR? WE HAVE ONE OF NORTH AMERICA'S LARGEST SELECTIONS OF USED and RECONDITIONED CNG COMPRESSORS, AS WELL AS DISPENSERS, GAS DRYERS AND STORAGE CYLINDERS
Email us at ****@canadianpurcell.com or call us TOLL FREE in North America at (***) 517-3180 from 8:00 am to 4:30 pm MST.
