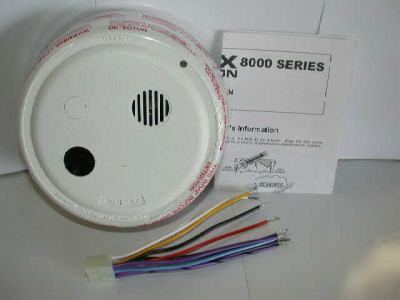

Gentex 8100PY photoelectric smoke detector
4 Wire Photoelectric System Detectors
The Gentex 8000/8003 Series of photoelectric detectors is
designed for commercial, industrial, residential and
institutional applications. The 8000/8003 is engineered to
provide outstanding performance wherever reliable fire
The Gentex 8000/8003 Series provides an exclusive
patented three position test feature that simulates a 0.85%
and a 3.5% actual smoke condition, in full compliance
with NFPA 72 and UL 268 Standards. The test feature has
the capability to let you know when maintenance is
A standard Form A dry relay contact for connection to the
system initiating circuit and an auxiliary Form C dry relay
contact is provided on all models for use for remote
annunciation as a releasing device services. Other options
include reverse/local 90dBA solid-state piezo horns and
135°F fixed temperature self-restoring integral or isolated
thermals to meet your specific requirements.
• Horn Frequency 3100 Hz (Nominal)
• Functional Test Switch — Patented Three Position Test
• On Site Maintenance Washing Program
• Form A/Form C Dry Relay Contacts
• Quick-Disconnect Wiring Harness
• 2 Year Warranty from Date of Purchase
• 5-to-1 Signal-to-Noise Ratio
• Solid-State LED Condition Indicator
• Mounting Hardware Adapts to Standard Junction Boxes
• Dust Cover to Prevent Contamination During Installation
• Protective High Air Velocity Gasket
• Suitable for release device service
• Temporal 3 Evacuation Sounding Device (8003 Series)
• CSFM Listings (7272-0569:102)
