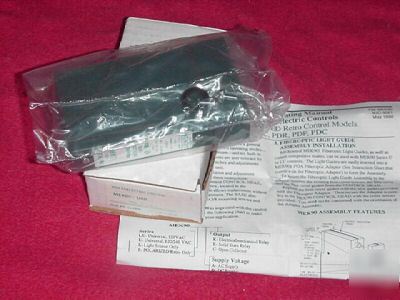

Joslyn clark (MEK90) uar programmable photo control
MEK-90 High Performance Series
User Programmable or Dedicated Controls:
Thru-Beam, Retroreflective, Diffused
Reflective, Convergent, Fiberoptic
Thru-Beam, Fiberoptic Diffused,
* Plug-in, quick disconnect housing without rewiring
* MEK-SENSE operating margin indicator
* User configurable: retro, diffused, light source or light receiver (thru-beam)
* Two timer included: on delay, off delay, one shot or one shot delayed
* Two selectable timing ranges: 0-1.5 seconds and 1-15 seconds
* Large capacity 6A SPDT relay
* AC FET outputs and NPN open collector outputs are available
* Fingertip sensitivity control adjustment
* Wide range of supply voltages: 120VAC, 105-264VAC or 10-30VDC
* Optional field lens kits for conversion to convergent beam or Fiberoptic
* Dedicated factory assembled controls: polarized retro, fiberoptic and dedicated
* Housing environmental integrity is NEMA type 1, 4, 4X, 12 and 13
* UL recognized and C.S.A. certified
Universal Control: Retro, Diffuse and Thru-Beam
Dedicated High Performance Series: Polarized Retroreflective
Dedicated High Performance Series: IR LED Light Source (Emitter) for Thru-Beam Sensing
Dedicated High Performance Series: Fiberoptic Controls (MEK901 Glass Light Guides Purchased Separately)
