Grind cube machinist/toolmaker, hardened, #10X32-14 ace

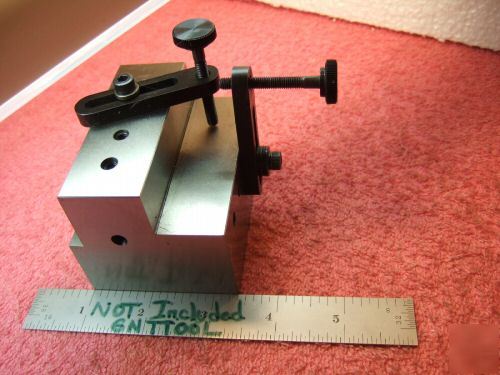

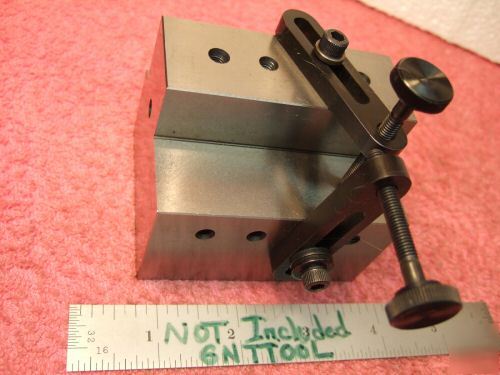

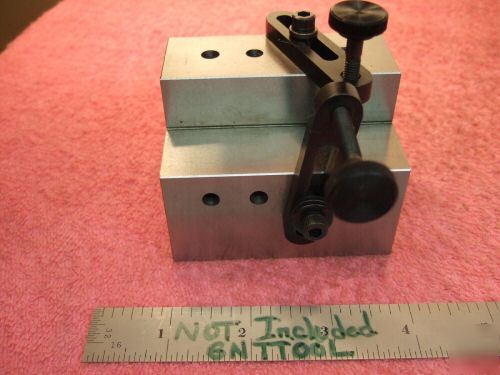

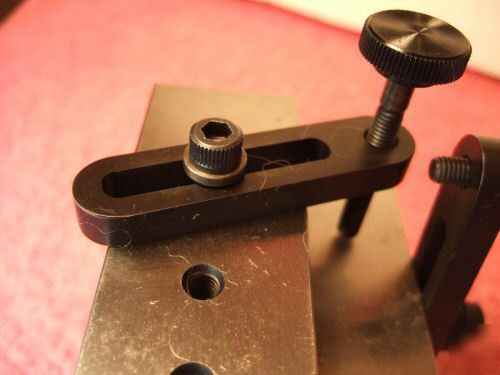

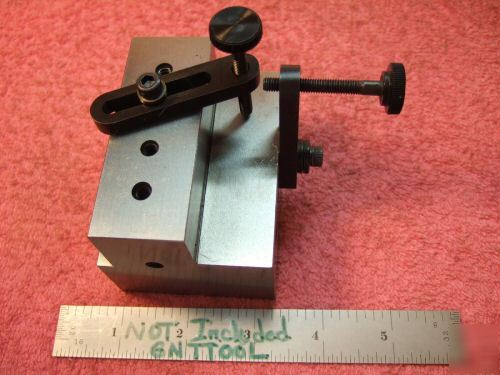

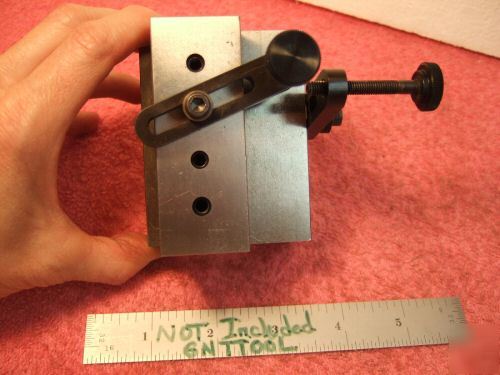

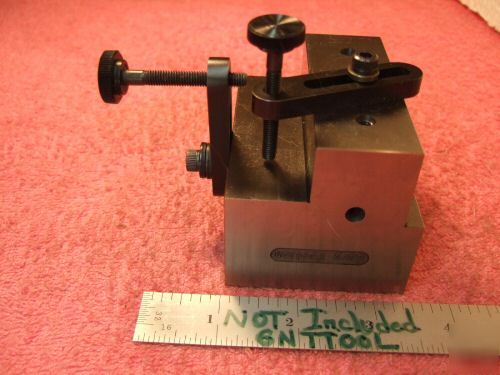

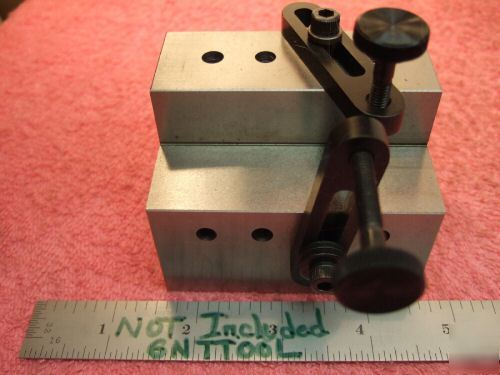

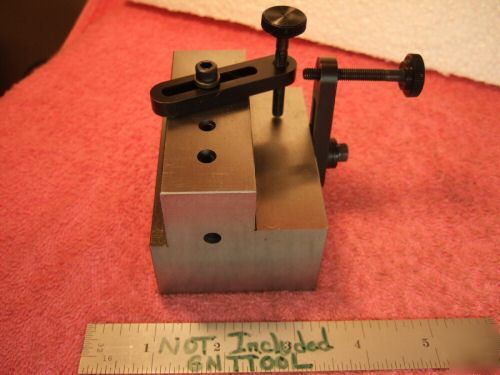

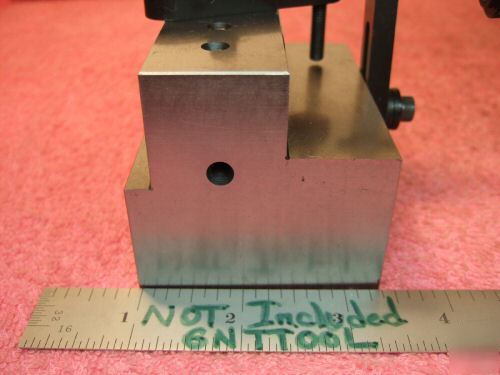

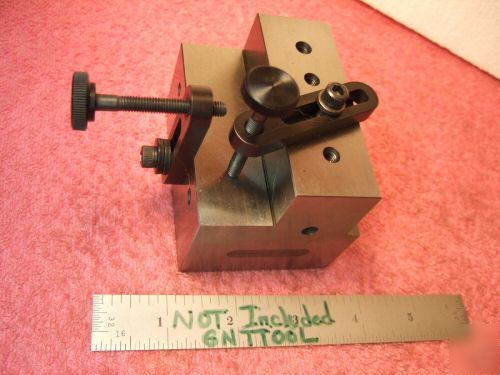

TOOLMAKER OWNED AND MADE BLOCK PICTURED HERE MEASURES 2.415" WIDE X 2.282" TALL X 3.056" LONG WITH (2) STEPS THAT MEASURE .755" TALL X .993" NEAREST THE 2 CLAMPS AND SECOND STEP MEASURES .252" X 1.06" TALL. ALL TAPPED HOLES (14) ARE #10 X 32. A-2 AIR-HARDENED TOOL STEEL HARDENED AND GROUND TOOL USED AS AN INSPECTION FIXTURE BY 30 YEAR PLASTIC INJECTION TOOLMAKER. BLOCK WAS GROUND USING A HERMANN SCHMIDT SQUARING BLOCK AND A HERMANN SCHMIDT MAGNA-SINE ON A TAFT-PEIRCE BALLWAY SURFACE GRINDER BY PA TOOLMAKER. MADE FROM HARDENED AND PRECISION GROUND TOOL-STEEL THRU-HARDENED ACCORDING TO OWNER.

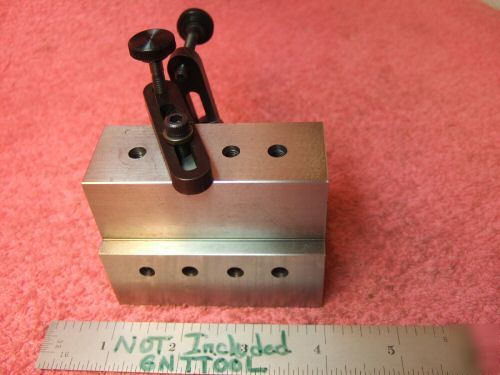

THIS BLOCK HAS (14) TAPPED HOLES #10 X 32 AS SHOWN. BLOCK WAS STORED IN A GERSTNER BOX AND BASE SOON TO BE LISTED. SEE PICS. NR
U. S. A. THE BEST IS HERE! SEE PICS.
