Keri pxl-500W tiger ii controller wiegand compatible
Powerful, high-quality, sophisticated access control systems at prices that are much less than others. Supports wiegand readers and cards Like HID 26 bit format.
Lets start with the world class hardware:
A RISC-based multiprocessor platform, resulting in the new PXL-500 Tiger II Controller.
The PXL-500W Tiger Controller has all of the functionality needed to manage a single door, alarm output, and 2 reader ports. A second door can be added when used with SB-593 Satellite Expansion Board.
The SB-593 Satellite Expansion Board (Sold separately) economically provides second door control plus extra general purpose inputs and outputs.
The new PXL-500 Tiger II Controller platform has taken Keri's acclaimed proximity-based access control system to the next level. Strong enough to manage a 256 door network at a single site or 256 doors per site at multiple sites, yet tame enough to handle a single door, the PXL-500 continues Keri's tradition of flexibility and expandability.
UL/CSA CERTIFICATION: The PXL-500 is UL certified under UL-508 (Control Equipment)

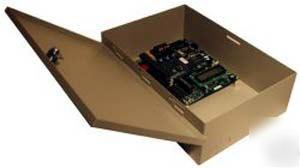

* Locking Metal Enclosure that can also house KPS-4 Power Supply and battery
* Added RAM for increased cardholder capacity (up to 65K per controller)
* On-board LAN socket for new low cost LAN-500 (optional)
* Increased EEPROM memory to support future enhanced firmware capabilities
Installer Features and Enhancements
* Double row header pins to ensure SB-593 is properly seated on PXL
* Additional LED indicator to confirm SB is properly seated
* RS-232 connector changed from DB-9 to quick disconnect terminal block
* RS-485 continuity indicator LED
* RS-485 connector different size so as not to interconnect with power input
* More protection for RS-485 circuitry
* Added relay protection for arc suppression
* Optional RS-485 Opto-Isolator for additional lightning protection
Other Great Installation Features-
On-board diagnostic tests built into the controller firmware
* Diagnostic LEDs on the controller board to assist with troubleshooting communication and controller power issues
* Automatically senses communication method (direct connect to PC or via modem)
* Auto-Configures RS-485 grounding for optimum performance - NO JUMPER SETTINGS
* Quick disconnect terminals
* Software auto-configures system components, no data entry required
* Push-button setting and visual LED display of address selection - NO DIP SWITCHES
