Hva 122-0601 applied 11000 series stainless gate valve
HVA High Vacuum Apparatus 122-0601 Applied 11000 Series Stainless Steel Gate Valve
Wide selection of used semiconductor equipment and electronic test manufacturing equipment and more – industrial equipment, semiconductor equipment, used industrial equipment, electronic test equipment and used semiconductor equipment and used electronic equipment from Equipment Exchange!
Equipment Exchange is one of the world's largest sellers of pre-owned or used semiconductor equipment, electronic test and manufacturing equipment online. Because our manufacturing equipment is used equipment, Equipment Exchange sells within your budget. If you are a start-up company or just trying to save money, our used semiconductor equipment, manufacturing equipment, industrial equipment and electronic test equipment will fit your needs.
For all of your used semiconductor equipment needs let Equipment Exchange help find it for you, whether it be used semiconductor equipment, electronic test equipment, industrial equipment, used electronic equipment, used industrial equipment – we save you money!

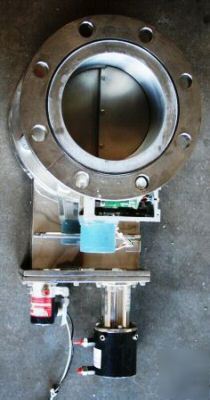

HVA High Vacuum Apparatus 122-0601 Applied 11000 Series Stainless Steel Gate Valve
* Model Number: 122-0601 Applied
* Factory Lead Time: 4 weeks
The 11000 Series Gate Valves feature a positive lock-over center mechanism or soft closure with pneumatic lock (optional). Valve maintains a closed status in the event of an air pressure loss. Linear actuation allows the use of a welded bellows to seal the actuator (i.e. no rotary seals). Shock and vibration are reduced to a minimum by a unique air cylinder design. This feature is extremely beneficial for semiconductor and other sensitive processing requiring operation relatively free of vibration.
The HVA stainless steel body offers one of the smallest interior surface areas in the vacuum valve industry. The body and all major internal components are vacuum furnace brazed at 1100° C at 10-6 torr insuring maximum joint integrity. This eliminates the possibility of "virtual leaks" or entrapment areas and minimizes body distortion found in conventionally welded valves. For maintenance purposes, the carriage assembly can be removed from the body without removing the valve from the system.
* 100,000 cycles before servicing (application dependent)
* High conductance, Straight Through Connectors.
* Valve closes in the event of power failure.
* Simple control via a solenoid valve with manual overrides
* Minimal vibration/ shock free operation
* Position Indicators Reed Switches standard with
* Pneumatic Actuators .625" thru 12.0" and larger
* Welded Stainless Steel Bellows
* Bakeable to 150° C, Viton Seal Bonnet
* Bakeable to 250° C, Metal Seal Bonnet
* Vacuum Furnace-Brazed 304 Stainless Steel Construction.
* .625" through 20.0" Standard Sizes
* Manual & Electropneumatic Operators
* Electropolished finish inside and out
