Tektronix AFG2020 arbitrary function generator w 2ND ch

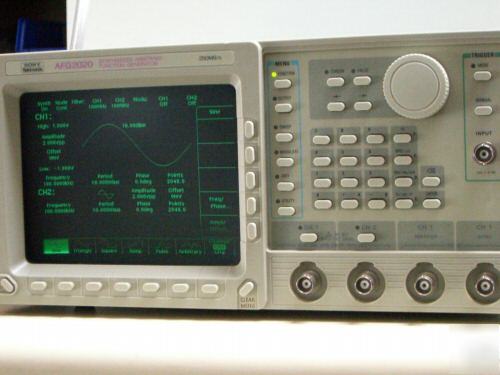

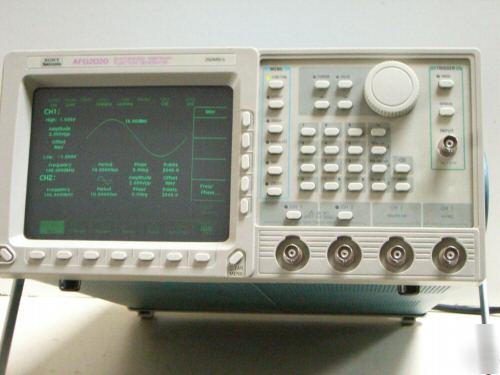

Tektronix AFG2020 Arbitrary Function Generator w/ 2nd Channel Option

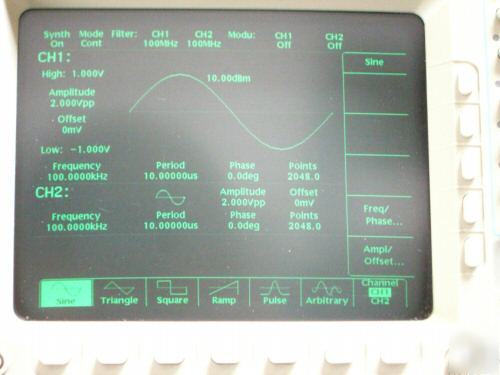

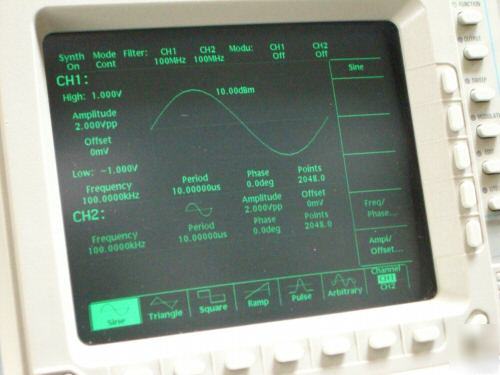

* Description: Features a built-in high resolution monitor with GUI, Vertical Resolution: 12-Bit (1/4096), Resolution Clock: 250 MHz, 1 ppm Accuracy, 0.5 Hz (10 digits), 16 separate arbitrary waveforms with 1K record lengths, Internal AM, FM, PSK, and FSK modulation, External AM modulation, Built-in linear/log sweep, Built-in trigger delay (700 ns to 100 s), Direct DSO waveform transfers without a controller, and a second channel with fully independent execution (Option 02).
* Cosmetic Condition: Excellent
* Working Condition: Untested. Calibration expired 05/07/07
* Other Comments / Notes: Unit includes Opt. 02 - 2nd Channel (MSRP for just the option alone was $3,950)
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
