Katso wagner automatic production cold saw model was-70

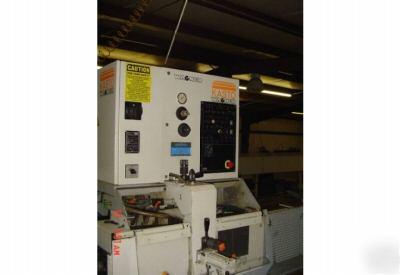

2000 Kasto Wagner Automatic Production Cold Saw. Model WAS-70 with Allen Bradley SLC-500 Control.
Set-up for production sawing with cool mist or flood coolant.
WAGNER circular cold sawing automatic model.
WAS-70 for production cutting of steel and related alloys and with HSS solid saw blades
Cutting Ranges Saw Blade Diameter 8-1/4" to 10-3/4"
Saw Blade Mounting 32 mm/4x9/ 50mm (1.26"/4x9/1.97")
Round Stock 10" Solid Material and Normal thick walled tubes 2-1/4"
Thin Walled Tubes (using Form Jaws) 2"
Round Stock 10"-3/4" Solid Material and Normal thick walled tubes 2-3/4"
Thin Walled Tubes (using Form Jaws) 2-1/2"
Square Stock-10" Solid and Tubes 2"
Square Stock 10-3/4" Solid and Tubes 2-1/2"
Flat Stock-10" Solids, Tubes and Profiles 4-3/4" x 1-3/4"
Added 6' extension to the bar loader; Can handle up to 24' Bars
Loading Unit: Loading Table for Round and Square Stock For
Initial Bar Lengths From 6' to 20'
Infeed Roller w/Tak Forward Speed, Inf. Variable 2' to 130' ft/min
Driving Power Saw Motor (1800/900 RPM) 4/2 HP
Electric Equip Operating Voltage 460V, 60 Hz
Control Type- Allen Bradley SLC 500
Saw Blade Cooling Flood Coolant- Standard Brinkman Coolant Pump 0.12 KW
Spray Mist: Unimax Coolubricator -Model 9570-8-6-8-X
Extra Equipment Pressure Reducing Valve-For Clamping Without Marking the Bars
Guides for Infeed Track w/out Holddowns For min Bar Size to 3/8"
Form Jaw Adapter Kit To Mount From Jaws
Pinwheel and Wire Brush To Remove Chips From Tooth Gullets
WAGNER circular cold sawing automatic model
WAS-70 for production cutting of steel and related alloys and with HSS solid saw blades
Cutting Ranges Saw Blade Diameter 8-1/4" to 10-3/4"
Saw Blade Mounting 32 mm/4x9/ 50mm (1.26"/4x9/1.97")
Round Stock 10" Solid Material and Normal thick walled tubes 2-1/4"
Thin Walled Tubes (using Form Jaws) 2"
Round Stock 10"-3/4" Solid Material and Normal thick walled tubes 2-3/4"
Thin Walled Tubes (using Form Jaws) 2-1/2"
Square Stock-10" Solid and Tubes 2"
Square Stock 10-3/4" Solid and Tubes 2-1/2"
Flat Stock-10" Solids, Tubes and Profiles 4-3/4" x 1-3/4"
Flat Stock 10-3/4" Solids, Tubes and Profiles 4-3/4" x 2-3/8"
Min Round or Square (10") 3/8"
Min Round or Square (10-3/4") 3/8"
Cutting Speed 10" Two Speed Motor 30/300 ft/min
Cutting Speed 10-3/4" Two Speed Motor 32/320 ft min
Saw Blade Feed Infinitely Variable 1" to 40"/min
Cut Off Length Gauge Measuring Range 3/4" to 12"
Trim Cut Automatic For Length From Remnant Length 3/8" to 3-1/2" Min 2-1/2"
For additional information or any questions, please contact Tom Cardone at ****@kdcapital.com or call (***)-212-0775.
