New mill, grinder, cnc, machine base ~ ~surplus~


MILL, GRINDER, CNC, MACHINE BASE ~NEW~SURPLUS~

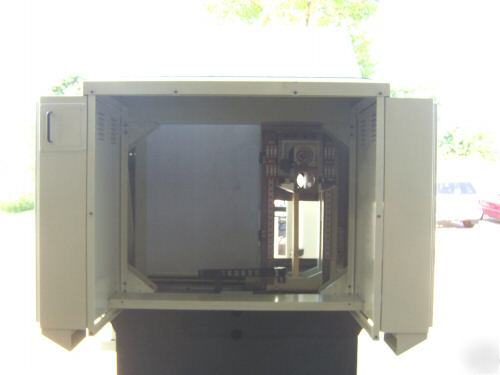

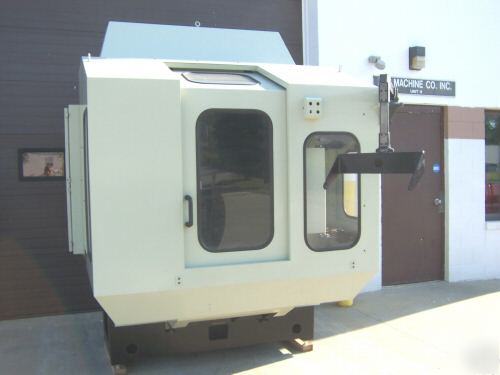

This is a new machine base which is surplus to our rebuilding needs. It was built as a milling machine, however, with cover system it could be turned into a special grinding type machine. A forth axis precision index table could be added or even a forth and fifth axis table.
Travels: X-axis: 32" / Y axis: 20" / Z axis: 16"

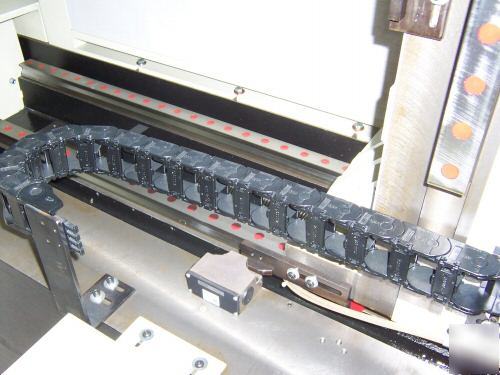

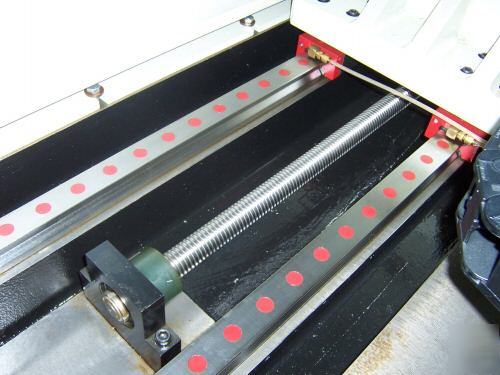

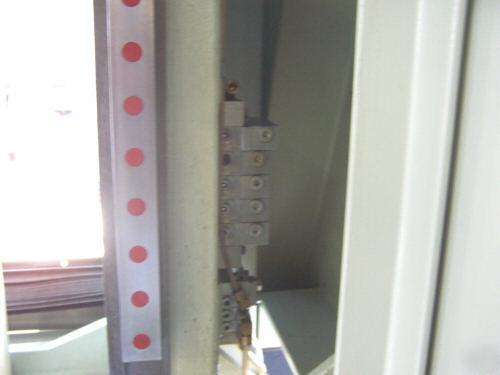

X-axis is mounted on two precision MRC linear rails and bearing cartridges with a third rail mounted at the top of the column for maximum rigidity.

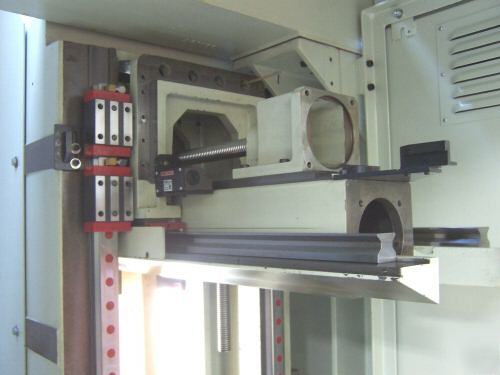

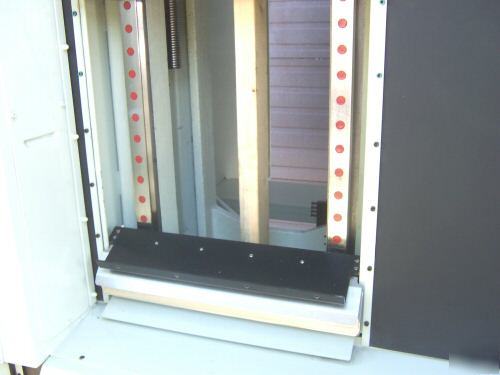

Y & Z also mounted on the same precision MRC rails

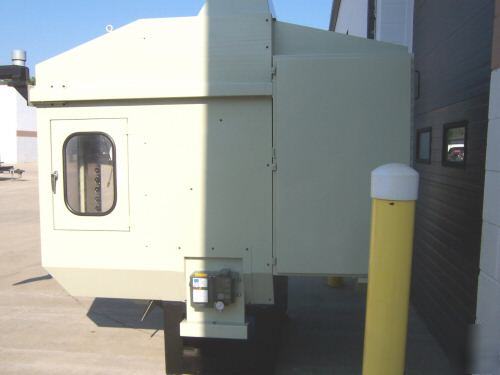

(2) Hoffman electrical enclosures: 30" x 48" x 10" deep

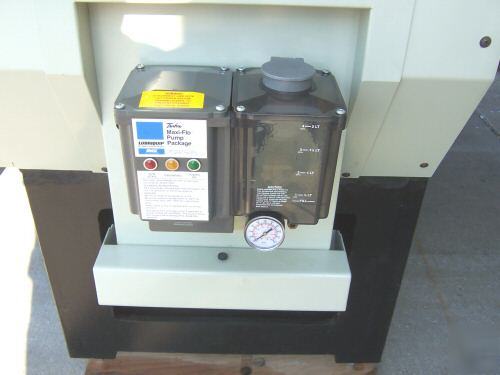

(1) Trabon auto lube system, 90% plumbed, needs a line ran from the pump to the manifolds. All tubing is ran to bearing cartridges and ballscrews.
(1) Pendant arm assembly w/ wireway connected to the right side enclosure. Both Hoffman enclosures are interconnected for ease of wiring.
Z-axis has a rap around bellows boot to keep coolant from rails and ballscrew.

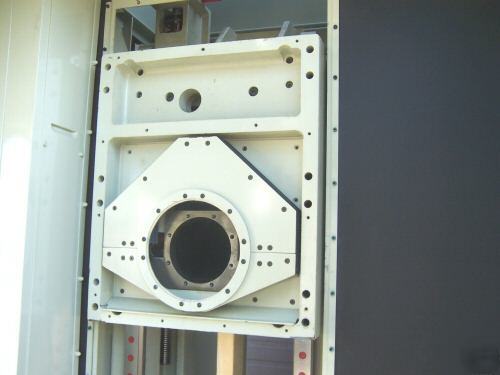

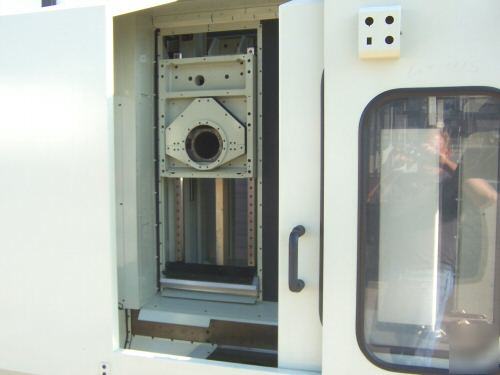

Machine is 80% mechanically complete, needs a spindle whether it be a milling or grinding spindle. Bore size for cartridge type spindle is 5". Needs a table. " T " slotted or an index head, rotary table ect.
** Very nice compact design.**
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Pictures taken of the damaged item's box as well as the item itself. So that we know what condition the item was in before its return to our facility.
Once you have taken the pictures, please e-mail us at
****@orwell.net and report the damage as soon as possible.
Steps will then be taken to quickly and efficiently resolve the issue
Note: If you have any questions, please e-mail or call Robert @ (***) 813-0920. Thanks!
