Karrykrimp karry krimp swaging machine 1/4 "- 11/4 "


KarryKrimp Hydraulic Swager/Krimper
It will swage 1/4" to 11/4" (-4 to -20) one and two wire hose and fittings.
The KarryKrimp is a portable and easy to operate crimping tool, offering a cost effective alternative for hose and fittings. It can be used for SAE100R1 and SAE100R2 hoses.

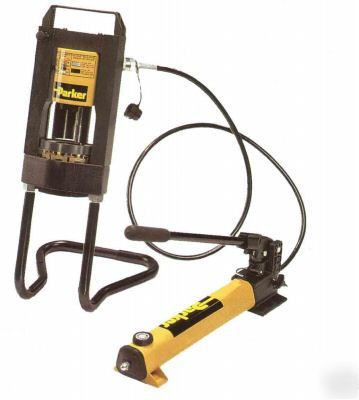

It comes complete with the swager itself , hand pump, connecting high pressure hose, 2 die rings for 1 or 2 wire hoses and 4 sets of dies. ¼”, 3/8”, ½” and ¾”. The normal application is 3/8” or ½”
The dies are colour coded so that each size has a different colour inlay. So that you always have the correct die for the size of hose. They are linked together with a chain so that it is impossible to drop and loose just one die. There is a ridge machined into the die so that the fitting fits in it and is always aligned in the correct place so there is no juggling the fitting.
There are no dials to set, charts to check or verniers to adjust. Each size hose has its own die set and to change from single to double wire all you do is change the silver die ring to the black one

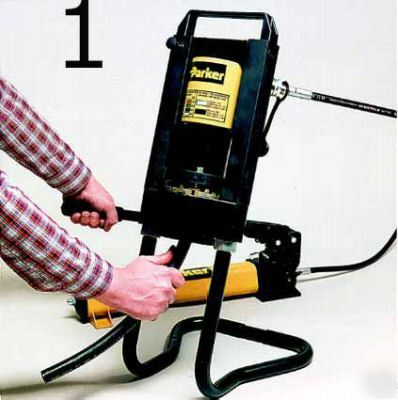

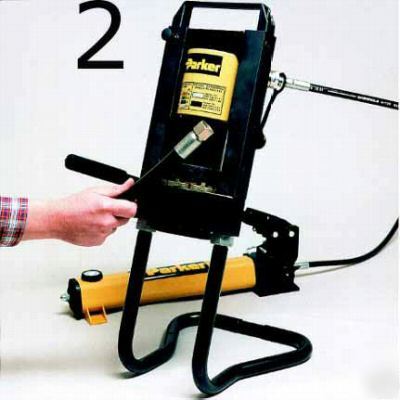

Look at the pictures 1 and 2 below.
To make an assembly all you need do is push the fitting onto the hose; make sure the fitting is located on the machined step, tighten the valve on the pump unit and pump until the ring touches the base plate.
Once the ring has touched the base plate you will be unable to pump any further. When this point has been reached, undo the valve on the pump unit, this will allow the ram unit to retract.
Remove the hose assembly and check the swage dimension.
This machine is so easy to use and idiot proof that if you use our hose and fittings we will take on product liability for any hose you make. This is because of the inside of the ferrule on the fitting, has special forward facing teeth which “bite” onto the hose and the fitting will not come off. The hose will burst long before this.
We will come and train you on the proper use of the machine and how to identify threads. Do a survey of your equipment and make a recommendation on the number and type of fittings you will need.
This is the reason we won the New Equipment Award at the Royal Show
