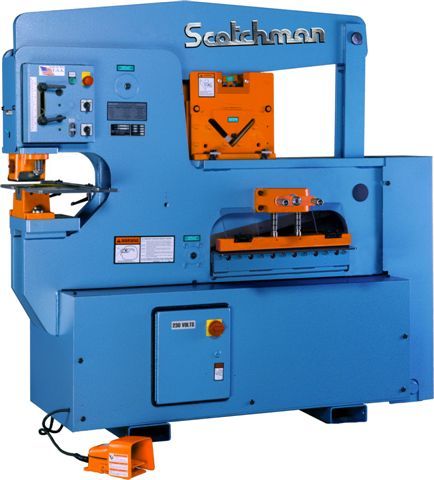

90Tn NEW IRONWORKER, Scotchman 9012-24M FREE
90Tn NEW IRONWORKER, Scotchman 9012-24M FREE
90 Ton Punch Station (1-1/8" in 1")
Punch Gauging Table with Fence and Scale
Die Holder Complete with 2" Die Insert
Punch Nut with Wrench & Stripper
One Round Punch & Die: Max. Dia. 1-1/4"
Adjustable Electric Stroke Control with Scale
Angle Shear Capacity 6" x 6" x 1/2"
24" Flat Bar Shear with 4-Way Reversible
Electrical Box w/ Emergency Palm Button & Lock-out Tag-out Accommodations
230/460 volt /3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with
Rated On: 65,000 PSI Tensile - A 36 Mild Steel
Punching Capacity: 90 Ton, 1-1/8” in 1"
Flat Bar Shear: 24” Length, 1" x 8", 3/4" x 12", 1/2" x 16", 1/4" x 24"
Opt. Saber Blade: 1/2" x 22", 3/8" x 24"
Angle Shear 90 Degrees: 6” x 6” x 1/2”
Angle Shear 45 Degrees: 4” x 4” x 1/2”
Open End Brake: Max 1/4" x 6" Flat or Angle Iron
Pipe Notcher Schedule 40 ID: ¾”, 1”, 1-1/4”, 1-1/2”, 2”
Rectangle Notcher: 2” x 2-1/2"” x 3/8”
90 Deg. V. Notcher: 6” x 6” x 5/16”
Round Rod: 1/4" to 1-1/4", 9 Cav.
Square Rod: 1/4" to 1", 1 Cav.
Square Tube Shear: ½” to 2”, 14 ga.
Picket Tool Housing: ½”, ¾”, 1”
Offset Die Holder: Max. 40 Ton
SPM - Light Material: ¼” Stroke
SPM - Heavy Material: ¾” Stroke
Motor Standard: 5 hp, 3 ph, 230/460/208/380/575
Motor Optional: 5 hp, 1 ph, 230 V
Dimensions: 26”W x 76”L x 70”H
Machine Location: HARRISON, NJ
