> 2200 / hcpl-2200 / HCPL2200 / hp 2200 / HP2200 / opto

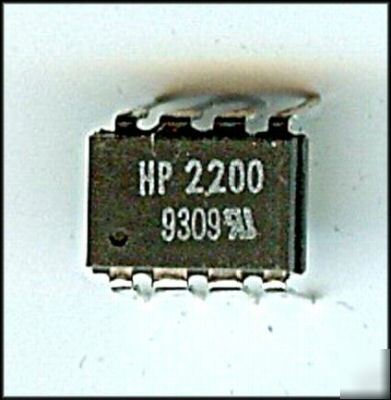

2200 / hcpl-2200 / HCPL2200 / hp 2200 / HP2200 / opto
Now over 1,000 items in our Store!
Please note: This spec sheet covers several different parts.
• 2.5 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 400 V (HCPL-2219)
• Compatible with LSTTL, TTL, and CMOS Logic
• Wide VCC Range (4.5 to 20 V)
• 2.5 Mbd Guaranteed over Temperature
• Three State Output (No Pullup Resistor Required)
• Guaranteed Performance from 0°C to 85°C
• Isolation of High Speed Logic Systems
• Computer-Peripheral Interfaces
• Microprocessor SystemInterfaces
• Pulse Transformer Replacement
The HCPL-2200/2219 are optically coupled logic gates that combine a GaAsP LED and an integrated high gain photo detector. The detector has a three state output stage and has a detector threshold with hysteresis.
The three state output eliminates the need for a pullup resistor and allows for direct drive of data busses. The hysteresis provides differential mode noise immunity and eliminates the potential for output signal chatter.
A superior internal shield on the HCPL-2219 guarantees common mode transient immunity of 2.5 kV/ms at a common mode voltage of 400 volts.
