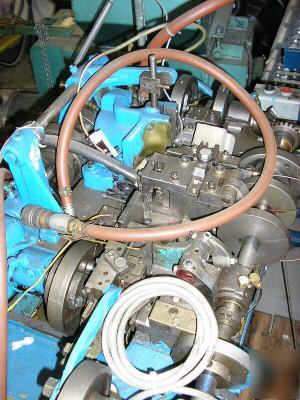

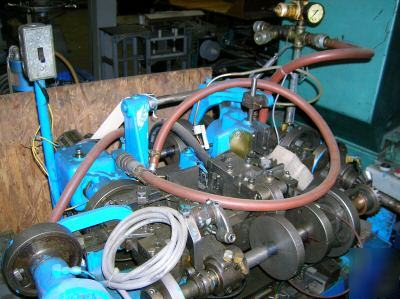

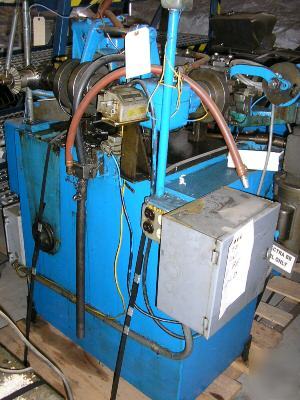

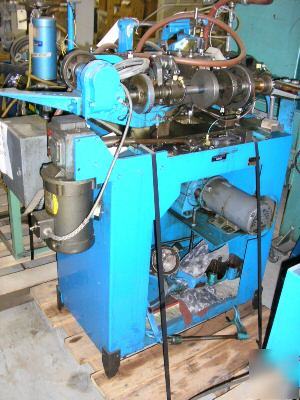

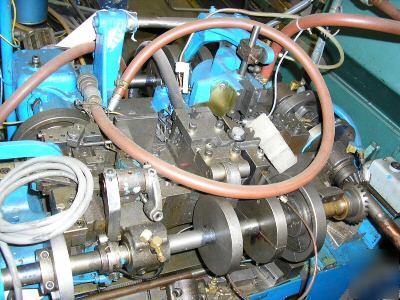

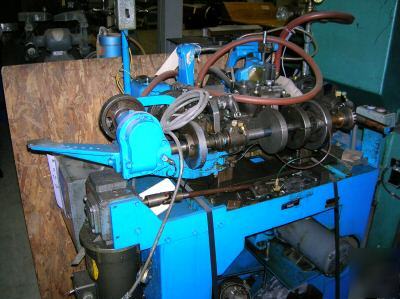

Nilson 00 four slide 3" feed x .033" strip cap - nice
Nilson #00, four slide machine. Max Length Feed: 3". Material Thickness Capacity: .004-.031, Bijur 1 shot lube. Varispeed motor, mechanical clutch, & part sensing.
MAXIMUM WIRE DIAMETER ................. 1/32"
MAXIMUM LENGTH OF FEED................. 3"
SPEED RANGE ........................... 90-350 SPM
STROKE OF FRONT SLIDE.................. 7/16"
STROKE OF SIDE SLIDES.................. 11/16"
STROKE OF BACK SLIDE................... 1/2"
OPENING IN BED......................... 2 x 2
APPROXIMATE FLOOR SPACE................ 37" x 42"
WEIGHT................................. 610 Lb.
THIS MACHINE HAS BOTH FLYWHEELS/HAND WHEELS, THE CLUTCH, THE V BELT DRIVE PULLY AND THE CLUTCH ENGAGEMENT LEVER. THESE ITMES WERE TAKEN OFF TO EXPOSE THE BEARINGS FOR INSPECTION.
LOOK AT THE PICTURES AND YOU CAN SEE THEM IN THE INNER CABINET. I JUST INSPECTED THEM WITH A 4 SLIDE TOOL MAKER AND HE CONFIRMED THAT THE MACHINE IS COMPLETE.
2 HALL EFFECT SENSORS ON CAMS AND MOVING PARTS FOR DETECTION AND DIE PROTECTION
ROCKWELL AUTOMATION VARIDRIVE MOTOR AND CONTROLS
ELECTRONIC PART SENSING PROBES TIED INTO THE CONTROLS
OVERALL DIMENSIONS: 3'6" L x 2'4" W x 4' H
