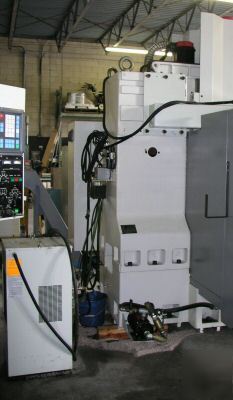

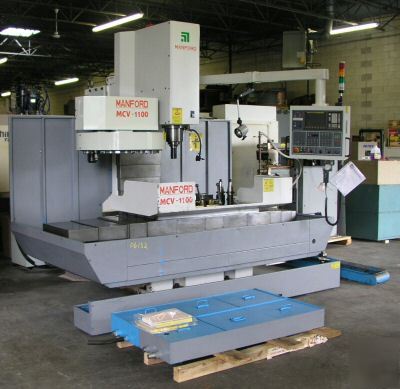

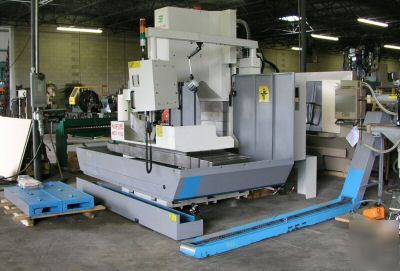

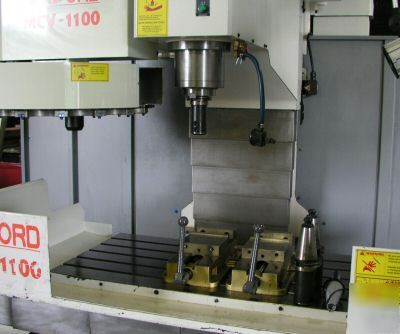

Manford vertical machining center
MANFORD VERTICAL MACHINING CENTER
Serial # 030134 New 8/2003 Model # MCV-1100
Table Size: 51.18" L-R x 23.62" F-B with (5) T-Slots on 3.93" Centers
Working Area: 43.30" L-R x 25.59" F-B
Maximum Table Load Capacity: 2,204 Lbs.
Distance from Spindle Nose to Table Surface: 5.90" to 29.92"
Distance from Spindle Center to Column: 27.55"
Fanuc O-M Control with MPG and Multi Color CRT
Belt Driven Spindle with Hi/Low Gear Transmission
Complete Coolant System with Chip Pan Flushing
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 117" L-R x 101" F-B x 102" H
