Tolomatic pneumatic rodless cable cylinder actuators

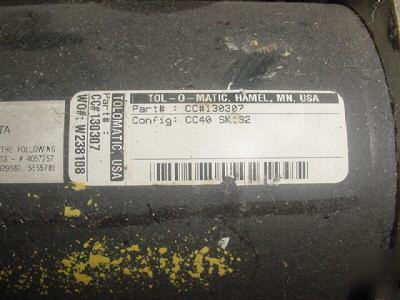

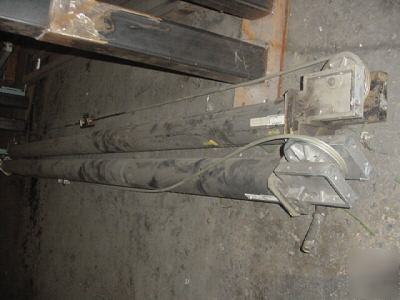

We have two Tol-o-matic linear type actuators. They are the cabled-cylinder type. They are 150.5 inches end to end with 4" aluminum cylinders. They are config CC40SK132, Part# CC#130307. They are very dusty. They were installed, but never used. Here are the specifications for this product.
Pneumatic Rodless Actuators - Double Acting Cable Cylinders - CC40
Base weight(Alum.): 20.75 lbs.
Base weight(Steel): 22.09 lbs.
Weight per inch of stroke(Alum.): .159 lbs.
Weight per inch of stroke(Steel): .459 lbs.
Maximum Force Output: 1248.9 lbs.
Temperature Range: 20o to 140o F
CC Double Acting Procuct Photo Large
Here is what Tolmatic says about its actuators in general on its website:
Pneumatic Rodless Actuators - Cable Cylinders
Tolomatic Rodless Cable Cylinders
In 1955, Tolomatic introduced the first cable cylinder to the market and it is still offers several popular and efficient, cost and space saving designs. Tolomatic offers double acting, double purchase, single acting and track cable cylinder models with a wide variety of bore sizes and options.
Cable cylinders provide these distinct advantages:
Allows equal force to be applied in both directions
Cables can be specified in different lengths for application flexibility
Cylinders can be isolated from any work area with extended cable lengths
Optional automatic cable tensioners
Auto tensioner and brake combinations available for static holding
Bore Sizes: Nine sizes ranging from 0.5 to 5 inches
Maximum Force Output: 19.4 to 1919 lbs (depending on model)
Maxium Pressure: 100 to 500 PSI (depending on model)
Auto Tensioners and Caliper Disc Brake options
