> Mitutoyo depth micrometer, series 129
Mitutoyo depth micrometer, series 129

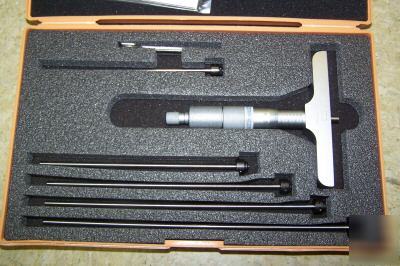

Mitutoyo Depth Micrometer Series 129-116
•Ratchet stop for consistent and repetitive measurements
•0.157" DIA. interchangeable rods, with lapped measuring end, are calibrated and tested at the factory.
The rod length can be adjusted, to conpensate weear on the measuring tip, with two supplied wrenches
•Satin-chrome finished throughout
•Crisp clear graduations on the thimble
•Complete with fitted carrying case
•Flatness of reference face (bottom face of base): 0.00005" for 2.5" base/1.3µm for 63.5mm base 0.00008" for 4.0" base/2µm for 101.6mm base
•Flatness of reference face (bottom face of base): 0.0001"/2.3µm
•Zero point error of rod: +/-(0.00008"+0.00004"xL*/3)
*truncated after decimal point
Range: 0-150mm Resolution: 0.01mm Base Length: 101.6mm Remarks: with Interchangeable Rods: 6 pcs.
Item is listed as used but was little used. Company is no longer in business. Company ID and calibration sticker is on the unit.
