Fluke MT820060A intellitone pro 200 toner, probe & case

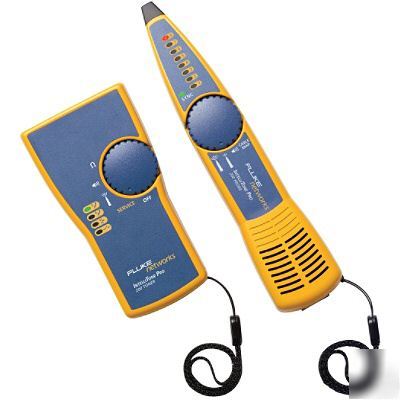

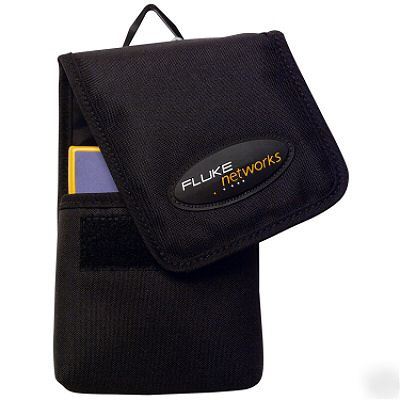

FLUKE MT820060A INTELLITONE PRO 200 TONER AND PROBE with CASE (NO LEADS)
The Fluke Networks MT-8200-60A IntelliTone Pro 200 Tone and Probe offers both digital and analog toning all in one tool. The IntelliTone Pro provides two cutting-edge technologies to isolate cables or wire pairs. The digital mode can be used to isolate twisted-pair cables on a switch or within a bundle, while the SmartToneā„¢ analog mode can be used to isolate wire pairs at an unterminated outlet or on a telecommunications block. The IntelliTone Pro toner's sychronized digital signal and the IntelliTone Pro Probe's microprocessor controlled signal identification technology reject noise and false signals to clearly identify cable location. The IntelliTone Pro 200 Probe features a Cablemap capability that identifies common cable miswires in twisted pair cabling. IntelliTone technology automates the testing of each conductor for end-to-end continuity; LED lights and tones clearly indicate miswires. The IntelliTone Pro 200 Toner LEDs clearly identify common datacom and telecom services found on today's networks including 10/100/Gigabit Ethernet links. This offer includes the IntelliTone Pro 200 Toner and 200 Probe, lanyards, carrying case, two 9V batteries.
MANUFACTURERS SUGGESTED RETAIL PRICE $200.00+
Eliminates confusion over cable location; decisively rejects noise and false signals
Locates the correct cable bundle
Isolates a cable within the bundle, despite cable bleed
Verifies twisted-pair installation with visual end-to-end continuity test (opens, shorts and reversed pairs)
Identifies individual wire pairs with new SmartTone analog toning
Simplifies signal interpretation in noisy environments with multiple LED indicators
IntelliTone Pro 200 Toner Specifications:
Toner Interface: Main Mod8 port for tone generation on all 4 pairs of UTP/STP cabling, F-connector for coaxial cabling, Banana jack plugs (2) - two conductor wiring
Control: Thumbwheel switch
Toner Frequency: IntelliTone signal: encoded digital signal Analog SmartTone signal: 500-1200 Hz, 4 songs
Talk battery voltage: 6V into 600W
Auto Power Down: Turns off automatically after 2.5 hours of inactivity
IntelliTone Pro 200 Probe Specifications:
Audio: IntelliTone: Microprocessor controlled audio files, Analog: Detected toner signal
Control: Thumbwheel switch, volume control wheel
Display: (8) LED indicators, Synch LED indicator
Tone Detection: Detects IntelliTone digital signal for Locate, Isolate and CableMap. Detects Analog SmartTone Signal (500-1200Hz) and other analog toners
Toner Interface: Main Mod8 port for cablemap on all four pairs of UTP/STP cabling
Auto power down: Turns off automatically after one hour of inactivity
