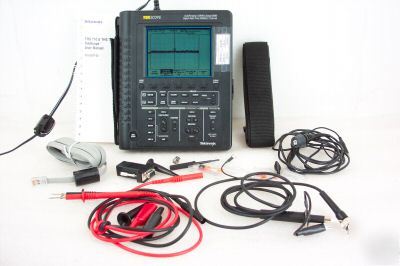

Tektronix THS720 tekscope 100MHZ handheld oscilloscope
Tektronix THS720 TekScope 100MHz Handheld Oscilloscope
Autoranging 100MHz Scope / DMM
Digital Real Time 500MS/s / Channel
We have 3 units available but this sale is for only one. The serial number of each scope are:
The software version is: v1.03.
Our lightweight THS700 Series integrates a 100MHz , 500 MS/s, two-channel display-benchtop specifications - with a true RMS DMM in a powerful handheld device to give you an unprecedented combination of power and portability.
Now you can tackle just about any measurement problem: from ATM servicing and automotive repair to industrial automation and ultrasound imaging. You can operate the scope and meter modes simultaneously or independently - on the same or separate signals.
You can also digitize at full bandwidth on both channels simultaneously. Compact and rugged, the THS700 Series rewrites the rules on what a handheld instrument can do.
** Frequency Range/ Bandwith: 100 MHz
** Max. Vertical Sensitivity: 50 V/div
** Min. Vertical Sensitivity : 5 mV/div
** Record Length: "2,500 pts."
** Type (D/A): Digital Hand Held
** IsolatedChannel™ architecture to ensure safety to user and equipment
** Comprehensive and advanced triggering including TV, delay and pulse width
** Digital Real Time acquisition with 100MHz bandwidth
** Rugged, portable Scope/DMM that is shockproof, dust and water sealed
