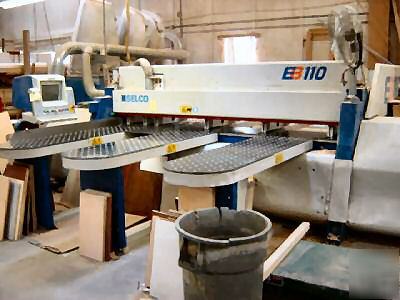

Selco EB110L horizontal beam panel saw
To schedule an appointment for inspection or with any questions you may have please contact us at (***) 839-2655 or by email at ****@machineking.com.
q Model: EB110L; Year: 2000; 220/440v; 60cy; 3ph; 19kw; 24amps.
q Overall cutting length128â€, 4 sheets 3/4" cutting height (110 mm saw blade projection), 18 HP main & 2.4 HP scoring motor.
q Modular roller rear machine table, side aligning device for squaring ripped strips out to 74", variable saw carriage travel speed 0 - 328 FPM; 328 FPM return; electronically controlled overhead program fence, rack & pinion driven, forward speed 196 FPM, return speed 196 FPM, (6) clamps (open up to 100 mm), of which (2) are closely spaced in crosscut area and the other (4) are at equal distance in rip cut area.
q AC Servo motor drives on both, saw carriage and pusher fence.

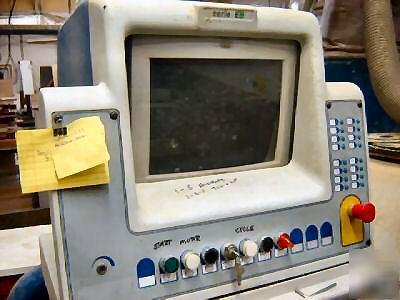

q "GATEWAY" PC controller w/graphics color monitor and "Assist Line" w/LED readout integrated into high tech look operator control panel (displays cutting dimensions & patterns), (400) Cutting patterns with (50) different dimensions for ea. pattern, self-diagnostic, data input by keyboard or direct downloading from office PC.
q 2,300 mm long crosscut fence (front to back), side/crosscut aligner.
q "Quick Change" saw blade replacement system.
q (4) front mounted air floatation tables with patented rounded front for moving panel from rip to crosscut position (24" x 79" each); rear of machine partially enclosed for safety. Low usage.
q Manual and service records are available.
Machine comes as shown in pictures.
* The unit is warranteed to work
* Price & Specifications Subject To Change without Prior Notice
* Specifications are quoted to the best of our knowledge and is subject to your verification and correction
* All quoted machines are subject to prior sale without notice.
