5' x 15" bergonzi model #TR1600 radial drill, 1980
Photo Sharing and Video Hosting at Photobucket

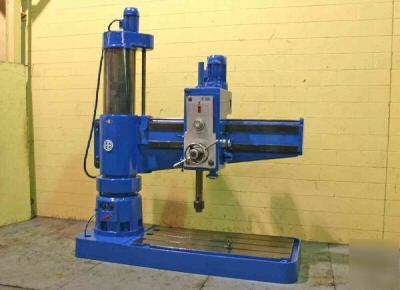

5' X 15" BERGONZI MODEL #TR1600 RADIAL DRILL
MODEL .................................. TM50-1600
YEAR NEW ............................... 1980
AREA OF BASE ........................... 66" X 33"
SPINDLE SPEEDS ......................... (16) 30 TO 1520 RPM
FEEDS .................................. (12) .004, TO 0.022 IPR
DIAMETER OF SPINDLE .................... 3-1/2"
TAPER IN SPINDLE ....................... #5 MT
SPINDLE TRAVEL ......................... 11-7/8"
DRILLING CAPACITY ...................... 2" MILD STEEL
DRILLING CAPACITY ...................... 2-9/16" CAST IRON
TAPPING CAPACITY CAST IRON ............. 2"
DISTANCE SPINDLE TO COLUMN ............. 63" MAXIMUM
VERTICAL ARM TRAVEL .................... 30"
DISTANCE SPINDLE TO BASE ............... 12" MINIMUM TO 54" MAXIMUM
TRAVEL OF HEAD ON ARM .................. 51"
POWER ARM AND HEAD CLAMPING ............ YES
COOLANT ................................ YES
MOTOR .................................. 7-1/2 HP
CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
