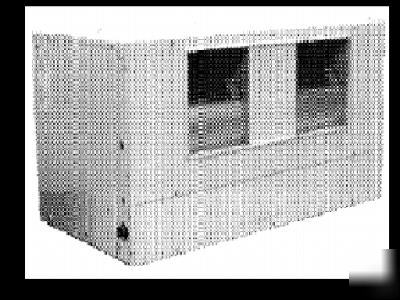

Commercial air handler - 7.5 ton R22
COMMERCIAL SPLIT SYSTEM AIR HANDLER
EFFICIENCY - 7.5 TON COOLING AND HEATING R22
CONSTRUCTION - Triple step pre-painted steel.
MOTOR - mounted inside of insulated cabinet to reduce motor noise and provide a neat looking installation.
LOW PROFILE - allows for horizontal installation in most standard drop ceiling applications.
COPPER TUBE/ALUMINUM FIN EVAPORATOR COILS - One circuit, 3 or 4 row coils are mechanically bonded.
THERMAL EXPANSION VALVES - Standard on all models.
ACCESSORY ELECTRIC HEAT KITS - 10-40kW - not included
REFRIGERANT CONNECTIONS - Field piping connections are made through a fixed post corner next to side access panel on the side of unit. This allows the flexibility to meet most filed conditions as well as full accessibility after the installation is complete.
SERVICE ACCESS - Two panels on each side of the unit are easily removed for access to motor, blowers and sheaves.
Nominal CFM @ Rated E.S.P 3200
Evaporator Motor - 1725 RPM - 3PH
Blower Size-Diameter & Width - 11.8 X 10.6
Coil Face Area (sq. feet) 9.26
Coil, Rows Deept - Fins Per Inch - 3/14
Refrigerant Control -Thermal Expansion Valves (Quantity) Y703-GA (1)
Filter Size Disposable - 16 x 25 x 2 (3)
AIR HANDLER MOTOR HP/FLA - 2/7.8/3.9
MINIMUM CIRCUIT AMPACITY - 15/15
Covered by manufacturer warranty.
