Zoeller 1 hp double seal sewage / waste pump E284

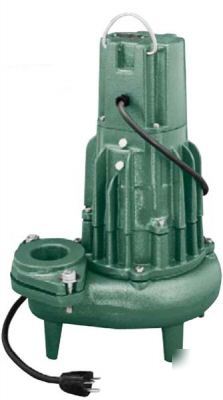

Zoeller 1 HP Double Seal Sewage/Waste Pump
· Non-clogging vortex impeller
· Durable cast construction. Cast iron switch case, motor and pump housing, base, and impeller. No sheet metal parts to rust or corrode.
· Stainless steel screws, bolts, float rod, handle, guard and arm, and seal assembly
· Shaft seal, carbon and ceramic rotary face seal with stainless steel wetted parts
· Upper sleeve bearing and lower ball bearing running in a bath of oil
· Maximum temperature for sewage or dewatering is 130 deg. F
· Motor: 60 Hz, 1750 RPM, oil filled, hermetically sealed, automatic reset thermal overload protected.
· Corrosion resistant powder coated epoxy finish
· On point 15 ¼”, Off point 5 ¼”
· Double seals eliminates seal and bearing damage from dry runs
· Major width 13 9/16”, Height 20 11/16”
