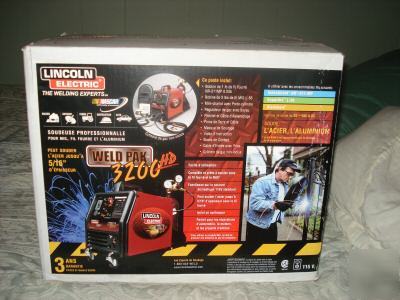

New lincoln mig welder 3200HD in box
Lincoln WELD PAK 3200 HD MIG/FLUX CORED WIRE WELDER
K2190-1 Weld-Pak 3200 HD 120/1/60
• Welds up to 5/16 in. steel using flux-cored wire.
• Comes complete with everything needed to weld mild steel with self-shielded flux-cored wire.
• Just add a cylinder of shielding gas to MIG weld mild steel with gas-shielded solid wire. The Weld-Pak 3200 HD package includes solid mild steel MIG wire, gas-shielded nozzle, adjustable gas regulator, gas hose and built-in gas solenoid valve.
• Plugs into 120V, 20 amp outlet.
• Gun trigger safety feature keeps welding wire electrically "cold" until trigger is pressed.
• Compact, portable, lightweight and easy to use.
• For welding .023-.035" mild steel and stainless steel solid MIG (gas-shielded) wire (stainless steel wire sold separately). Also for .035" mild steel flux-cored (gasless) wire. Install K664-2 Aluminum Welding Kit to expand the Weld-Pak 3200 HD's welding capabilities to include .035" aluminum solid MIG wire.
• Welding procedure chart for mild steel is conveniently located inside the wire feed section door making voltage and wire speed selection a snap!
• Fan-cooled for long life expectancy.
• Three year warranty on parts and labor. (90 days warranty on gun and cable).
Dimensions (in) H x W x D : 12 x 9.75 x 16.5
Dimensions (mm) H x W x D : 305 x 248 x 419
Rated CC AC Output Amps/Volts/Duty Cycle
Rated CC DC Output Amps/Volts/Duty Cycle
Rated CV Output Amps/Volts/Duty Cycle
• Magnum® 100L welding gun and 10 ft. cable assembly with .025" contact tip installed
• 10 ft. work cable and work clamp
• Factory installed gas solenoid valve for MIG welding
• Adjustable gas regulator and hose kit for Argon and Argon-mixed gases (gas regulator requires an adapter - sold separately - for use with CO2 cylinders)
• 2 lb. spool .025" SuperArc™ L-56 mild steel MIG wire
• 1 lb. spool .035" Innershield® NR-211-MP flux-cored wire
• Spare .025" contact tips – quantity of 3
• .035" contact tips – quantity 3
• Welding handshield with #10 filter plate and clear glass cover plate
• Adjustable wire spool spindle accepts 4 in. or 8 in. diameter spools
• Undercarriage that accommodates Weld-Pak 3200 HD and single gas cylinder (gas cylinder and shielding gas sold separately
