New lincoln pro-mig 140 mig/flux-cored wire feed welder~
Lincoln Electric ~ Pro-MIG 140 ~ MIG/Flux-Cored Wire Feed Welder ~ NEW!
Whether you have a home project, farm repairs or basic autobody welding to complete, the Pro-MIG 140 should be at the top of your shopping list! Requiring common 120 volt input power, the Pro-MIG 140 can be used almost anywhere. With simple two knob tapped control, the machine is easy to set up for gas-less flux-cored welding for deep penetration on thicker steel or gas-shielded MIG welding on thin gauge steel, stainless or aluminum. Compare the precise drive, rugged construction and full list of standard accessories...Lincoln Pro-MIG is an excellent choice!
* Forgiving arc makes dialing in your application easy.
* Smooth arc starts with minimal spatter.
* Wide 30-140 amp welding output range.
* MIG weld 24 gauge up to 10 gauge (.135") sheet metal in a single pass. Weld up to 5/16" steel using self-shielded Lincoln Innershield® wire (FCAW-S).
Professional, Precise Wire Drive Features:
* Precision full adjustment drive system reduces chance of wire tangling and crushing.
* Brass-to-Brass gun connections for enhanced connectivity.
* Large industrial closed-design drive motor for improved torque and trouble-free performance.
* Spool Gun Ready – add the optional Magnum 100SG spool gun for reliable operation at the high wire feed speeds aluminum welding demands. No expensive outboard modules required.
* No Hassle Tool-less Design – for wire spool mounting, wire drive service and polarity changes.
* Innovative contact tip, drive roll and nozzle storage – keeps all your consumables close at hand.
* Power Chassisâ„¢ channels airflow to cool power systems, structurally secures key components and traps wires and cables to avoid unnecessary abrasion.
* Toughest PC Board Protection in the industry – ‘Potted’ to seal sensitive components from the environment, ‘trayed’ in a tough plastic tray to add rigidity and shock resistance.
* Weight:58 lbs. (26.3 kgs. )
* Dimensions (in) H x W x D : 14 x 10.15 x 18.6
* Dimensions (mm) H x W x D : 357 x 258 x 472
* Wire Feed Speed Range (IPM): 50-500
* Wire Feed Speed Range (M/MIN): 1.3-12.7
* Solid Wire Size Range: .025-.030"
* Cored Wire Size Range: 030-.035"
* Magnum® 100L gun and 10 ft. (3.0 m) cable assembly with brass gun connection and 4-pin MS-Type connection for trigger control (K530-6)
* .025" (0.6 mm) Contact Tips (Qty. 3)
* .035" (0.9 mm) Contact Tips (Qty. 3)
* Gasless Nozzle for Innershield® welding
* Gas Nozzle for MIG welding
* Spindle Adapter for 8" (203 mm) Diameter Spools
* .025" (0.6 mm) Wire Diameter Drive Roll for MIG welding (KP2529-1)
* .035" (0.9 mm) Wire Diameter Drive Roll for MIG welding (KP2529-2)
* .030"-.045" (0.7-1.1 mm) Wire Diameter Knurled Drive Roll for Flux-Cored welding (KP2529-3)
* Harris® 3000290 Gas Regulator and 52 in. (1.3 m) Hose for use with CO2 or argon blend gases. (For use with CO2 shielding gas, order a Lincoln® S19298 CO2 shielding gas bottle adapter.)
* 2 lb. (0.90 kg) Spool of .025" (0.6 mm) diameter SuperArc® L-56® premium MIG wire (ED030583)
* 1 lb. (0.45 kg) Spool of .035" (0.9 mm) diameter Innershield® NR-211-MP flux-cored wire (ED027641)
* Work Clamp and 10 ft. (3.0 m) Cable
* Instruction Manual (IM891)
* Learn to Weld Manual (LTW1)

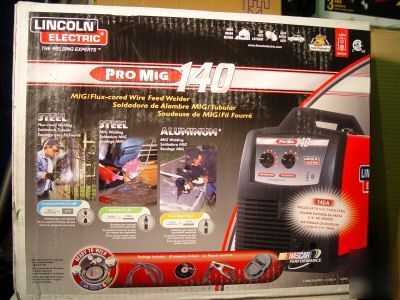

The photo of the sealed-box is the actual item.
This Lincoln Electric Pro MIG 140 is Brand New and Factory-Sealed!It is not reconditioned or refurbished.
The photo of the sealed-box is the actual item.
Please note: Although this item is sold with no warranty, expressed or implied, it is guaranteed to be "as described". We try to be as exact as possible when it comes to describing a particular item and its condition...we check these things very closely to ensure your satisfaction.
Florida residents must add 7% Sales Tax
Thank you for stopping by to take a look at this listing. Please feel free to contact us with any questions you may have and Good Luck!
