New 36" tan itz vertical band saw 20-42" under guides

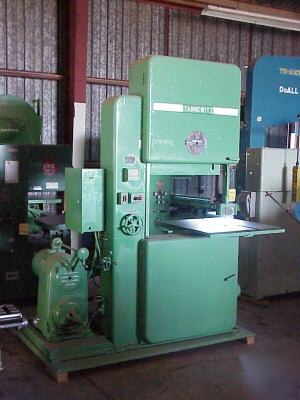

(1) Used 36” TANNEWITZ Mdl. GVTNE Vertical Band Saw; S/N 13309
Throat Depth........................................................ 35 1/2"
Work Thickness…................................................ 20" - (Up To 42” Optional)
Wheel Diameter.................................................... 36"
Blade Width Capacity…………………………… 1/8” to 2”
Blade Length…………………………………….. 18'7" min - 19'19" max
Blade Speed (Infinitely Variable)………………. 100-11,000 F.P.M.
Guide Post Size…………………………………. 1 ¼” x 2 ¼”
Table Size (Main)……………………………….. 36” x 37”
Table Tilt………………………………………… 45 Degrees Right / 5 Degrees Left
Table Height……………………………………... 42” (From Floor)
Upper Wheel Adjustment………………………… 5”
Main Drive Motor................................................ 10 H.P.
Electrical Characteristics....................................... 220/440 VAC
TANNEWITZ High Speed Pressed Steel Wheels w/Replaceable Tires And Rims
Heavy Duty High Speed Blade Guides
U.S. ELECTRICAL Variable Speed Drive
DRIVE-ALL Mdl. DAF244, 3 Speed Geared Transmission
Electric/Hydraulic Wheel Brakes
Optional Power Feed Table System
Optional Extended Height (Work Thickness) Capacity
Overall Dimensions: 8' L-R x 5' F-B x 108" Height
Weight: 5,000 Lbs. (Estimated)
F.O.B...........................................Casa Grande, AZ
For more information you can contact Charles or Danny in one of the following ways:
