New fluke 196B scopemeter oscilloscope option 003

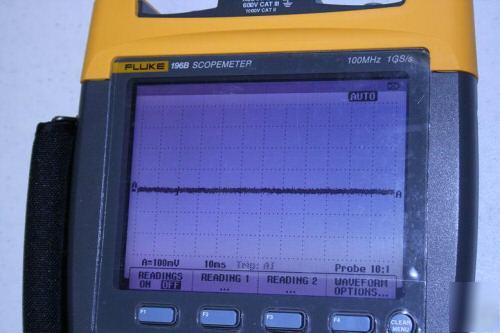

Fluke Networks 196B ScopeMeter Oscilloscope w/ Medical Option Installed
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty
The Fluke 196B/003 ScopeMeter high-performance oscilloscope offers specifications usually found on top-end bench instruments. With up to 200 MHz bandwidth and 2.5 GS/s real-time sampling and a deep memory of 27,500 points per input, it's ideal for engineers who need the full capabilities of a high-performance oscilloscope in a handheld, battery-powered instrument.
* Dual-input – 100 MHz bandwidth
* Up to 2.5 GS/s real time sampling per input
* Digital Persistence for analyzing complex dynamic waveforms like on an analog scope (190)
* Large, high resolution color or monochrome screen
* Connect and view automatic triggering and a full range of manual trigger modes
* Fast display update rate for seeing dynamic behavior instantaneously
* Automatic capture and replay of 100 screens
* 27,500 points per input record length using ScopeRecord mode
* TrendPlot paperless chart recorder for trend analysis up to 22 days
* UP to 1000 V independently floating isolated inputs
* 1000 V CAT II and 600 V CAT III safety certified
* Five hours rechargeable Ni-MH battery pack
* Accessory Package for Fluke 196B-003 includes:
* BC190 Battery Charger/Line Voltage adapter
* BP190 NiMH Battery Pack
* Getting started booklet
* TL75 Hard Point Test Lead Set
* VPS200-G Voltage Probe (200 MHz, 10:1), Grey
* VPS200-R Voltage Probe (200 MHz, 10:1), Red

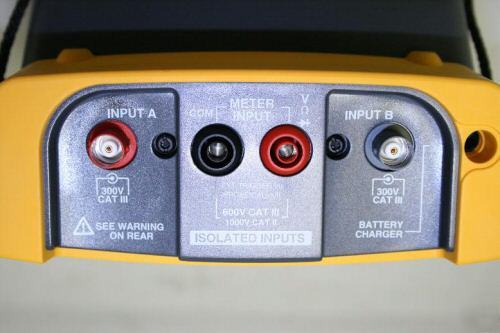

Independently floating isolated inputs
Up to 1000 V between inputs, references and ground
Connect-and-Viewâ„¢, Free Run, Single Shot, Edge, Delay, Video, Selectable pulse width and External
144 mm full monochrome LCD with fast update rate
1,000V CAT II/600V CAT III (EN61010-1)
Mechanical & General Specifications
3 years parts and labor (1 year on accessories)
Optically isolated via optional PM9080/OC4USB for interfacing to Printer or PC

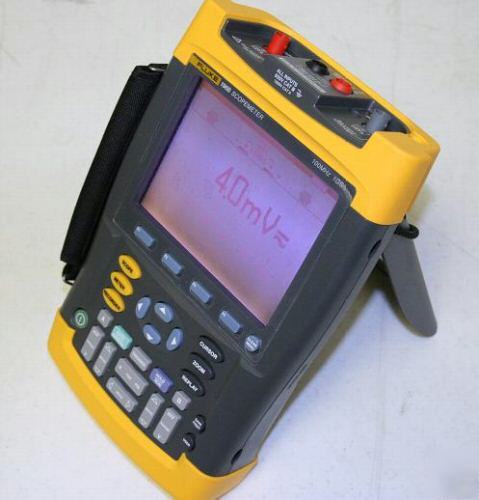

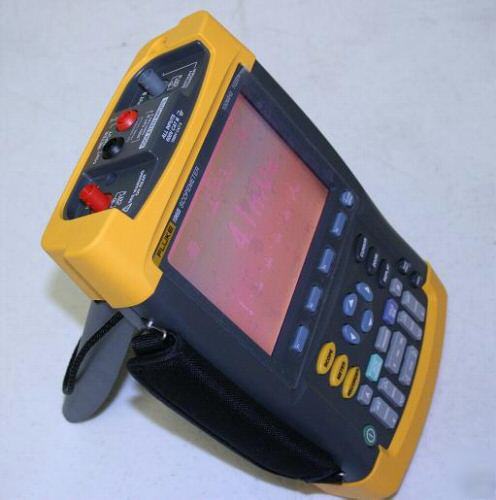

* Fluke 196B ScopeMeter Oscilloscope
* Option: Medical Option Installed

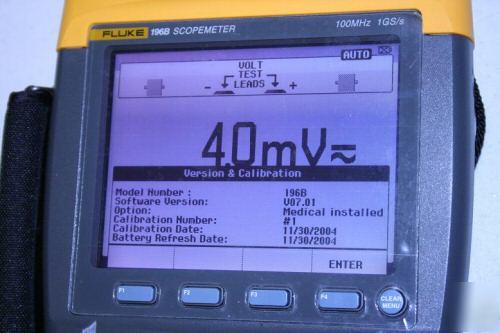

* Firmware Version V7 Installed
* Rechargeable NI-MH Battery Pack
* (2) 1000 V Oscilloscope Probe Sets (Red and Grey)

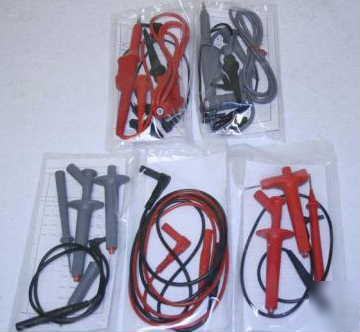

* (2) Probe Accessory Sets (Red and Grey)

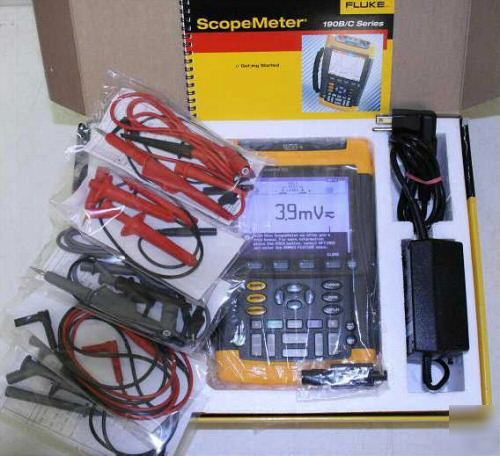

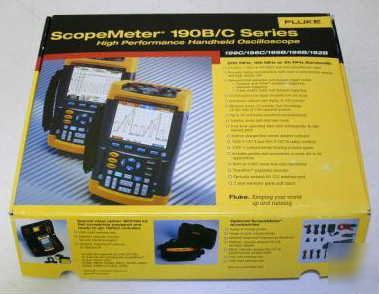

* Original Packaging and Box
