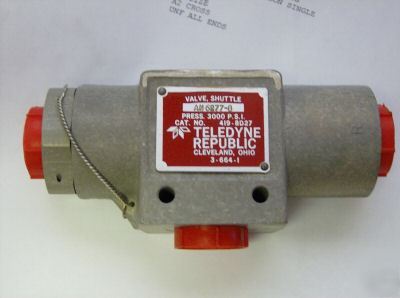

Teledyne republic shuttle valve A3Q86 3Q85 3000PSI
Teledyne Fluid Systems Republic or Teledyne Industries Inc. shuttle valve pat number AN 6277-6 or 3Q86/3Q85. The NSN number for this part is 4820-00-361-8633. Please refer to the following statistics below for more information:
Thread Class: 3B ALL ENDS, Thread Direction: Right-Hand all Ends, Flow Control Device: Piston, Valve Discharge Rate: 3.5 Gallons Per Minute, Connection Style: G4 Gasket seal all ends, Valve Operation Method: Hydraulic, Connection Type: Threaded internal boss all ends, Mounting Facility: Bracket, Maximum operating Pressure: 3000.00 LBS/Sq In. single response, Nominal thread size: .562 in. All ends, Material: aluminum alloy body, Steel Corrosion resisting flow control device, Rubber Synthetic packing material, Media for which designed: Fuel/Oil, Hydrocarbon single response, Proprietary characteristics: All Pacs, Surface Treatment: Anodize, Style designator: A2 Cross, Thread Series Designature: Unf all ends.
