1-5/8" traub TNM42, 6-axis swiss cnc auto screw machine

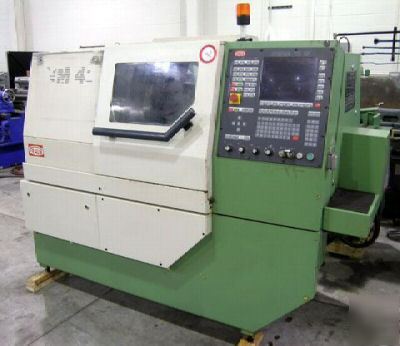

Liberty Machinery Company-You are looking at a 1-5/8", Traub,No.TNM42,6-Axis,Pick-Off/Back Working TX8F CNC,LNS Bar Feed-Serial No. NR254Condition - UsedNew - 1995-SPECIFICATION:Main Spindle
Bore Size of Front Spindle Bearing 3.35" / 85 mm
Bore Size of Rear Spindle Bearing 3.15" / 80 mm
Feed Collet Type Schutte VD/SF40
Repeat Feed Travel of Feed Finger Mechanism 3.75" / 95 mm
Main Spindle Speeds - Infinitely Variable 40 - 4000 RPM
Rating at 100/63/25% Duty Cycle 7.375/9.25/14.75 HP
Stroke of Slides - Maximum 1.69" / 43 mm
Working Stroke - Maximum .985" / 25 mm
Longitudinal Movement - Z-Axis 9.65" / 245 mm
Transverse Movement - X-Axis 2.36" / 60 mm
Rapid Traverse Rate - X/Z Axis 49.212 FPM / 15/15 m/Minute
Contouring Rate - X/Z Axis 22.965 FPM / 7/7 m/Minute
Turret Reception Bores 1" / 25.4 mm
Turret Indexing Time 1 Station 0.6 Seconds
Automatic Bar Loading Magazine
Component Size - Maximum 1.65" Dia. x 3.94" L
Machining Unit on Part-Off Side
Clamping Diameter 1.65" / 42 mm
Longitudinal Traverse 4.73" / 120 mm
Spindle Drive, Frequency-Controlled
Power Rating 1.77 HP / 1.32 kW
Clamping Diameter .0394" - .63" / 1 - 16 mm
Clamping Diameter .63" / 16 mm
Milling Cutter Diameter 3.15" / 80 mm
Thread Milling and Polygon Turning Attachment
Milling Cutter Diameter 2.52" / 64 mm
Thread Milling Speed - Maximum 4000 RPM
Polygon Turning Speed - Maximum 8000 RPM
Programming EIA and ISO Code -EQUIPPED WITH:TXBH Control type
Bar Feed Model:LNS HYS 6.42 Hs 4.8 -*Preliminary Specification Subject to Verification.-Click Pictures To Enlarge:
