Hp - agilent 8620C sweep oscillator w/opt 011 & scales
SOLD IN USA ONLY! SOLD IN USA ONLY! SOLD IN USA ONLY!

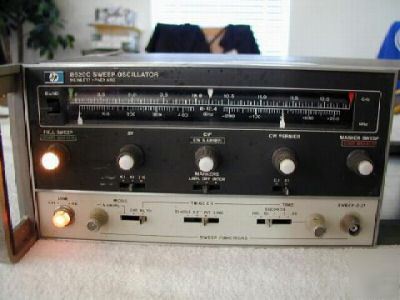

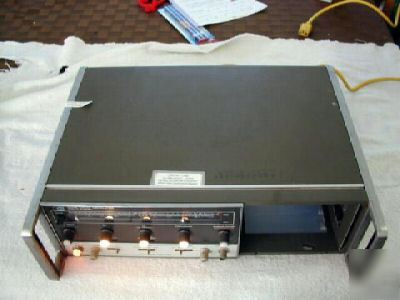

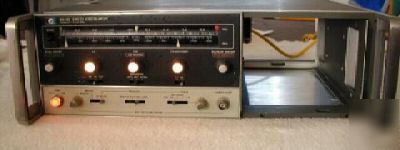

The 8620C Sweep Oscillator Mainframe, with more than 15 solid-state plug-ins available (sold separately), can provide >10 mW of leveled output power from 3 to 18 GHz. Plug-In sweep bandwidths range from 3 to 350MHz to the wide band 2 to 18 GHz module. With appropriate plug-ins, four separate bands and their respective frequency scales can be selected. Start-Stop sweep points may be set from 1% to 100% of band, up or down scale, at sweep rates from 10 msec to 100 sec per sweep. DeltaF sweeps, at the same rates, from 1% or 10% of band may also be made. CW, continuous wave, makes the sweeper a signal generator, which may be modulated, or allows manual sweeps for frequency calibration. Other sweep modes include automatic, manual, externally triggered, single sweep, and remotely programmed.
SPECS: *Frequency: 3MHz to 18GHz based on RF Plug-In *Sweep functions: Start-Stop, Delta, CW, Remote Programmed. *Sweep modes: auto, line, external. *Sweep time: 10 msec to 100 sec. *Sweep output: direct coupled, 0 to 10 V. *Modulation: Internal AM 1 kHz; External FM based on RF unit. *Marker: 1 *Option 011.
Again, SOLD IN USA ONLY! SOLD IN USA ONLY! SOLD IN USA ONLY!
Reasonable offers are well come! REASONABLE ONES!
My phone # is (***)-235-5613. This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html
