Gigatronics 8542C rf power meter, dual channel - tested

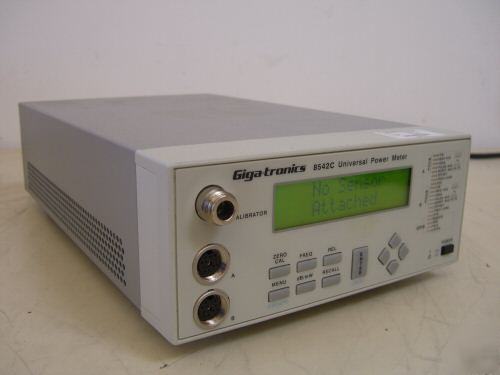

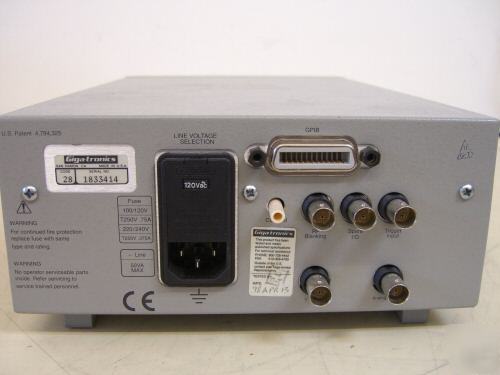

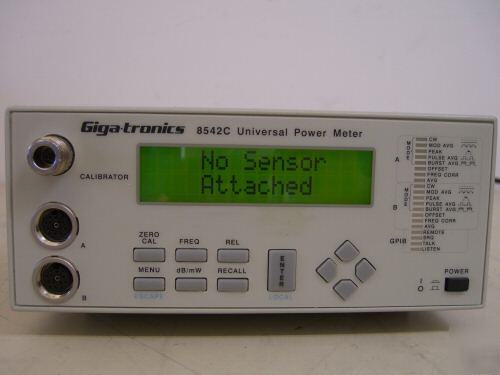

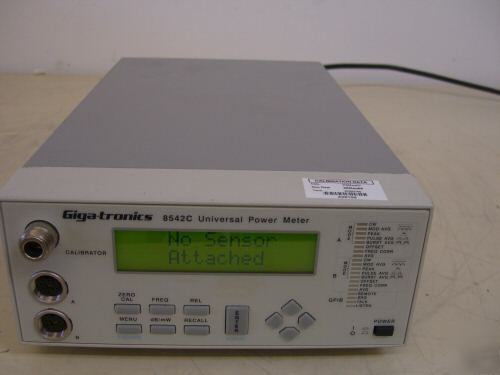

Gigatronics 8542C Power Meter, Dual Channel
* Description: The GigaTronics 8542C Dual Channel Universal Power Meters combine high accuracy, speed, range and measurement capabilities rarely available from any other power meter. Built-in features such as power sweep calibration and frequency calibration factors provide an unequaled degree of measurement accuracy. The Gigatronics 8542C has the speed and range to meet the throughput demands of high-volume manufacturing. And the meter can measure the CW, peak and true average power of the complex modulated signals used in EW, radar and communication systems. Features include:
* Frequency Range 100 kHz to 40 GHz, depending on sensor used
* Power Range: -70 to +47 dBm, depending on sensor used
* Choose from an extensive line of CW, Peak, Modulation and True RMS sensors
* Single Sensor Dynamic Range:
* CW Power Sensors: 90 dB (-70 to +20 dBm)
* Modulation Power Sensors: 87 dB CW, 60 to 80 dB Modulation Mode
* Peak Power Sensors: 50 dB CW, 47 dB Peak
* Automatically measure average power of TDMA, GSM, and CDMA signals
* Optional Time Gating to program a measurement's start time and duration
* Achieve 500 reading per second over GPIB
* Use the Fast Buffered Mode to capture up to 4000 readings per second
* Measure the instantaneous peak power level of a pulse modulated signal

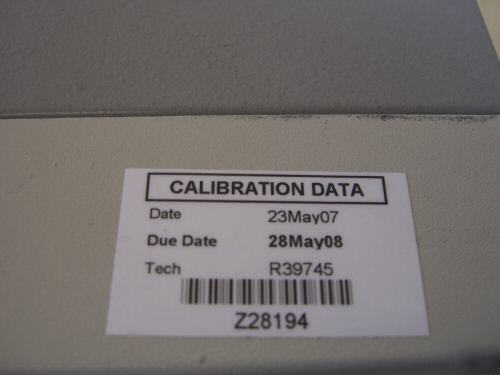

* Working Condition: Tested. Still within current calibration cycle.
* Other Comments / Notes: Cables are available for additional fee. Please inquire.
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
