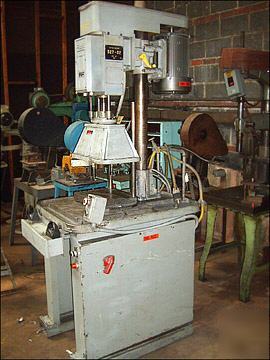

Ettco automatic leadscrew tapping machine
ETTCO AUTOMATIC LEADSCREW TAPPING MACHINE
Maximum Spindle Torque 2100 Inch Pounds
Spindle Drive Universal Face Plate with 1 ¼†dia.hole
Number of Cycles 30 Full Cycle Per min
American Standard Right Hand Pitch 20 to 100
Approximate Work Area 21" W x 20" Deep
Column Dimension 3 1/2" round x 52" high
Motor: 5 HP 3/230/460-1075 RPM
MULTI-SPINDLE HEAD SPECIFICATIONS
Drilling area Rectangle 13 1/2 x 6 3/4"
Drill capacity per spindle in mild steel 3/8"
Max recommended speed 3,000 rpm
(20P, 24P, 27P, 28, 32P,50MMP, 50MMP)
Machine Net Weight (lbs.) 1000
