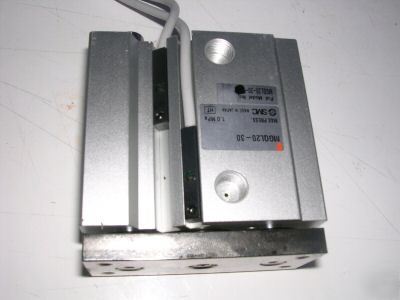

New smc compact guided air cylinder, slide, MGQL20-30
New SMC Compact Guided Pneumatic Cylinder with 2 Magnetic Sensor Switches, Quick connections
Also known as Linear Thruster or Pneumatic Slide
20mm 3/4" Bore Air Cylinder, 30mm 1-3/16" Stroke, 10mm 3/8" Guide Pins, 150 psi Max. or 1.0 MPa
Face of Tooling Plate is 72mm by 30mm or 2-13/16" by 1-3/16" with 4 tapped holes
Z73 Reed Switches are 2 wire, 12 or 24 VDC, 100 VAC or less, Indicator Light
For more info please go to the SMC catalog at this site http:// /2002/e/webcatalog/docs/actuator/stdairguide/stdairguide.htm#33731
